Repair Procedures: Adjustment

Select Cable Adjustment

1. Remove the select cable snap pin (A) and then remove the select cable (B) from the shift lever pin.

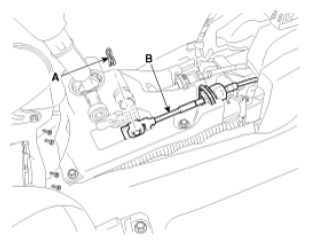

   Fig 1: Select Cable And Snap Pin

   Courtesy of KIA MOTORS AMERICA, INC.
2. Shift the shift lever to 3rd gear.
3. Move the slide clip (B) of guide member (A) in the direction as shown in the illustration.

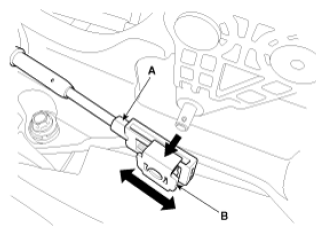

   Fig 2: Checking Slide Clip Of Guide Member

   Courtesy of KIA MOTORS AMERICA, INC.
4. Install the select cable (A).
   Fig 3: Select Cable

   Courtesy of KIA MOTORS AMERICA, INC.
5. Insert the slide clip in the direction as shown in the illustration and then install the snap pin (A).

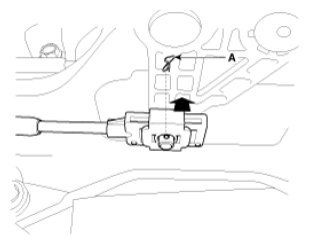

   Fig 4: Installing Snap Pin

   Courtesy of KIA MOTORS AMERICA, INC.
