Repair Procedures: Installation

Install in the reverse order of removal.
NOTE:
- When installing, set control shaft lever to neutral position.

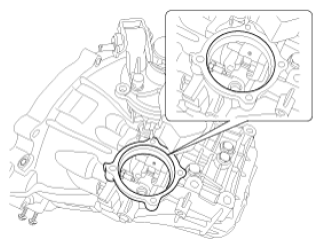

  Fig 1: Control Shaft Lever
  Courtesy of KIA MOTORS AMERICA, INC.
- When installing, apply the sealant as shown in the illustration.
Specified sealant: MS 721-40 or MS721-38

Fig 2: Locating Grease Applying Area On Control Shaft Lever
Courtesy of KIA MOTORS AMERICA, INC.
After installing, check to be sure that this part operates as designed at each range of T/M side corresponding to each position of shift lever.
