Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. IG KEY "ON" & ENG "OFF" (Fig 1)

    Warm up the engine to normal operating temperature. (Fig 2)

  3. Monitor IATS related parameter on the "Current Data"  with GDS.

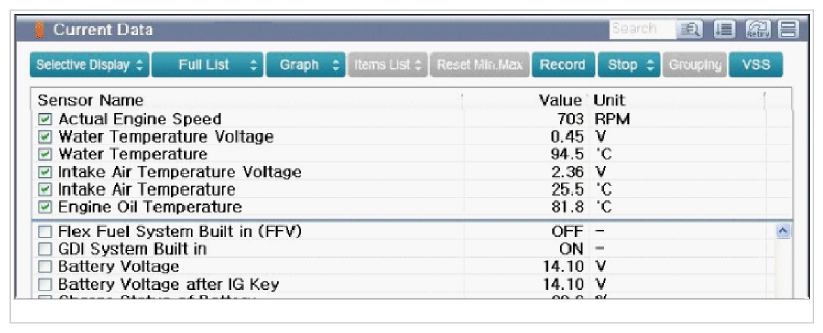

    Fig 1: Display - IATS Parameter Current Data Screen
    G09749318Courtesy of KIA MOTORS AMERICA, INC.

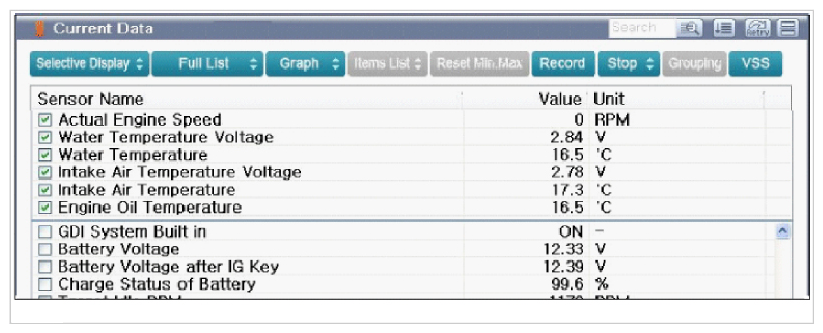

    Fig 2: Display - IATS Parameter Current Data Screen
    G09749319Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the "IATS" parameter displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM/PCM's connector or was repaired and ECM/PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
