Components Location

WARNING: This page is about a different car, the 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

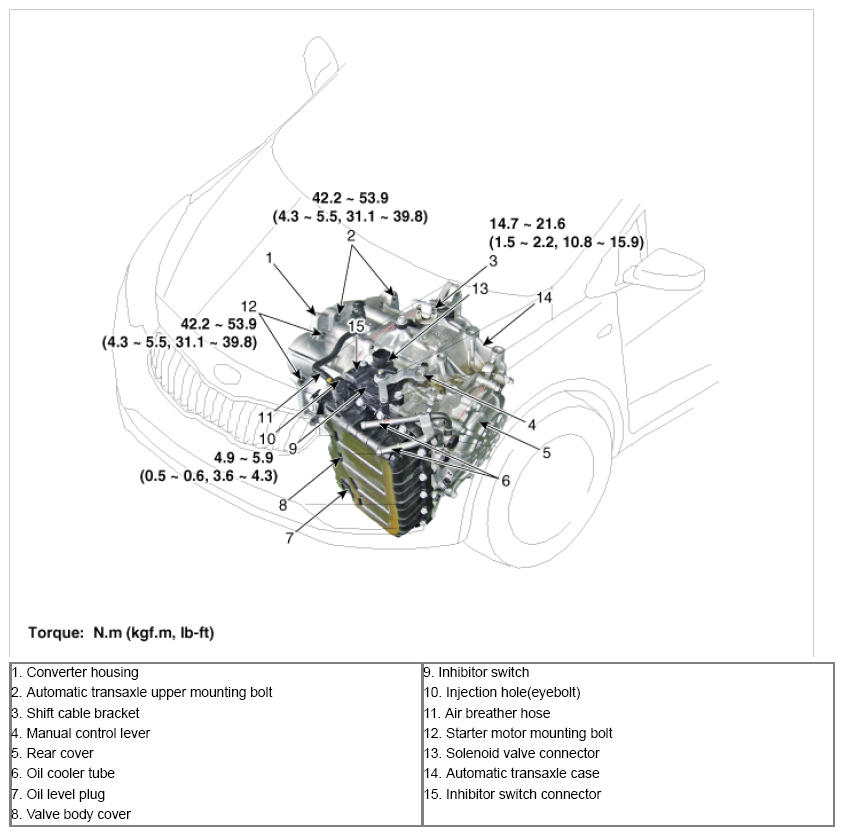

Fig 1: Automatic Transaxle System Components Location With Torque Specifications
G09748817Courtesy of KIA MOTORS AMERICA, INC.
