Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

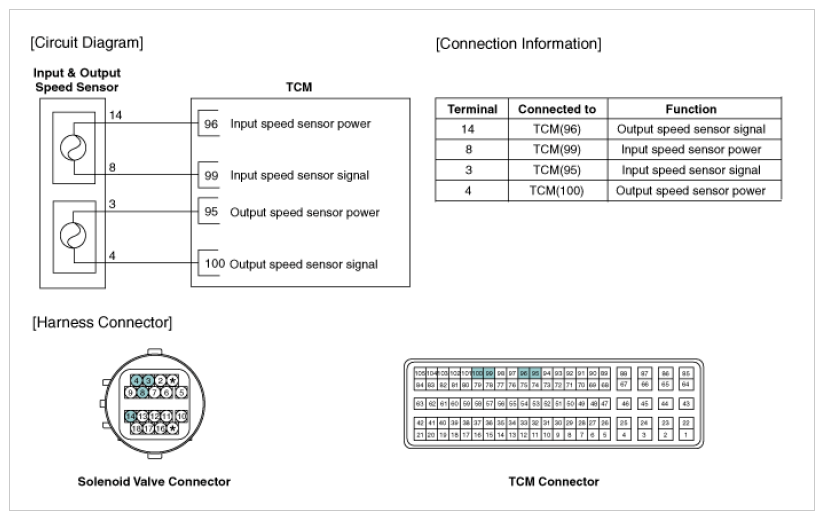

Fig 1: Input & Output Speed Sensor - Circuit Diagram
G09747168Courtesy of KIA MOTORS AMERICA, INC.
