Repair Procedures: Removal

Air cleaner assembly and air duct.
(Refer to "AIR CLEANER ")
Battery and battery tray.
(Refer to "BATTERY ")
Remove the ground line after removing the bolt (A).

Fig 1: Ground Line Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

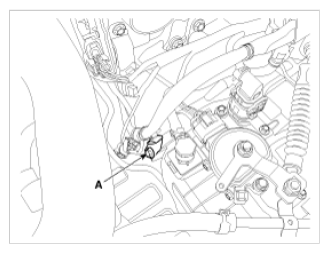

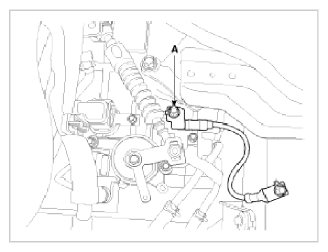

Remove the wiring mounting bolt (A).
Tightening Torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 2: Removing Wiring Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the wiring clip from the bracket.

Fig 3: Wiring Clip
Courtesy of KIA MOTORS AMERICA, INC.

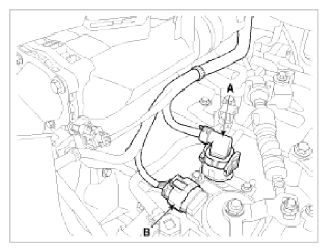

Disconnect the solenoid valve connector (A) and inhibitor switch connector (B).

Fig 4: Solenoid Valve And Inhibitor Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

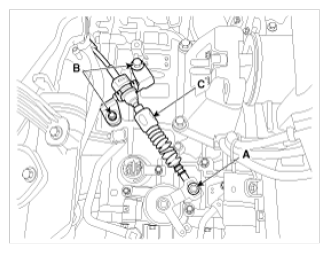

Remove the shift cable (C) after removing the nut (A) and the bolt (B).
Tightening Torque:
1. 9.8 ~ 13.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.1 lb-ft)
2. 14.7 ~ 21.6 N.m (1.5 ~ 2.2 kgf.m, 10.9 ~ 15.9 lb-ft)

  Fig 5: Shift Cable, Bolt And Nut
  Courtesy of KIA MOTORS AMERICA, INC.

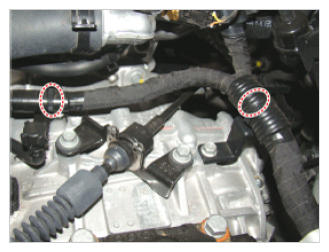

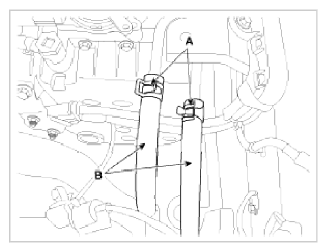

Disconnect the hose (B) after removing the automatic transaxle fluid cooler hose clamp (A).

Fig 6: Automatic Transaxle Fluid Cooler Hose Clamp And Hose
Courtesy of KIA MOTORS AMERICA, INC.

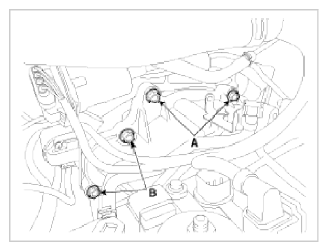

Remove the automatic transaxle upper mounting bolt (A-2ea) and the starter mounting bolt (B-2ea).
Tightening Torque:
1. 42.2 ~ 54.0 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)
2. 49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)
Fig 7: Automatic Transaxle Upper And Starter Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the cowl top cover.
(Refer to "COWL TOP COVER ")

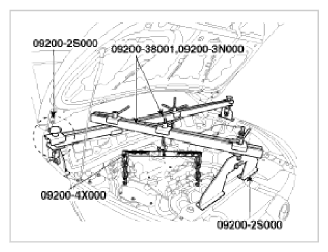

Assemble the engine support fixture.
(Refer to "SPECIAL SERVICE TOOLS ")
Using the engine support fixture (beam No.: 09200-38001 or 09200-3N000, supporter No.: 09200-2S000, adapter No.: 09200-4X000), hold the engine and transaxle assembly safely.

Fig 8: Engine Support Fixtures
Courtesy of KIA MOTORS AMERICA, INC.

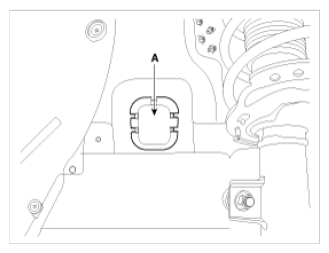

Remove the cover (A).

Fig 9: Cover
Courtesy of KIA MOTORS AMERICA, INC.

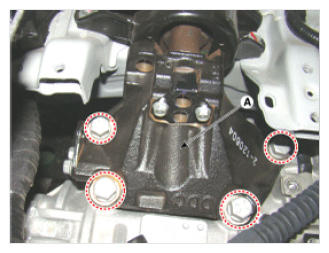

Remove the automatic transaxle mounting bracket bolts (A).
Tightening Torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.8 lb-ft)

Fig 10: Automatic Transaxle Mounting Bracket Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the automatic transaxle support bracket (A).
Tightening Torque:

58.8 ~ 78.5 N.m (6.0 ~ 8.0 kgf.m, 43.4 ~ 57.9 lb-ft)

Fig 11: Automatic Transaxle Support Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle with a jack.

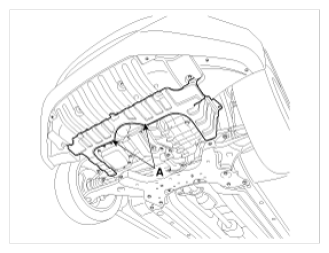

Remove the under cover (A).

Fig 12: Under Cover
Courtesy of KIA MOTORS AMERICA, INC.

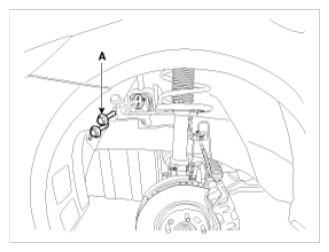

Remove the bracket (A).

Fig 13: Under Cover Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Remove the drive shaft assembly.
(Refer to "FRONT DRIVESHAFT ")
Remove the sub frame.
(Refer to "SUB FRAME ")

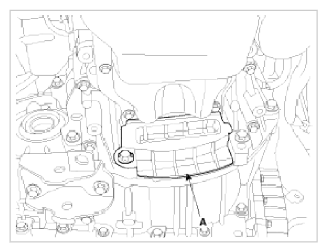

Remove the dust cover (A).
Tightening Torque:

42.2 ~ 48.1 N.m (4.3 ~ 4.9 kgf.m, 31.1 ~ 35.4 lb-ft)

Fig 14: Dust Cover
Courtesy of KIA MOTORS AMERICA, INC.

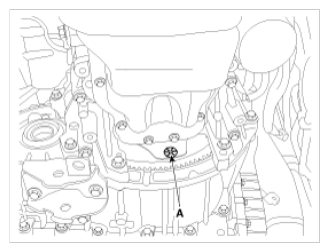

Remove the torque converter mounting bolt (A) with rotating the crankshaft.
Tightening Torque:

45.1 ~ 52.0 N.m (4.6 ~ 5.3 kgf.m, 33.3 ~ 38.3 lb-ft)

Fig 15: Torque Converter Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Lubricant should be applied on thread of bolt before tightening.

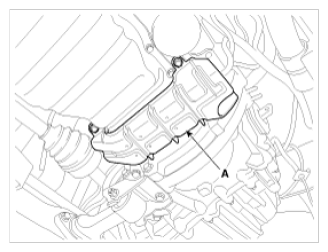

Remove the drive shaft cover (A).

Fig 16: Drive Shaft Cover
Courtesy of KIA MOTORS AMERICA, INC.

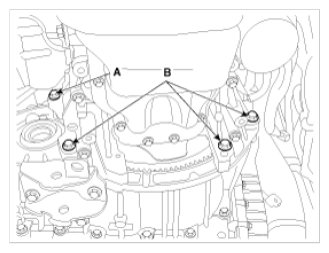

Remove the mounting bolt (A, B) after supporting the transaxle by a jack.
Tightening Torque
1. 42.2 ~ 54.0 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)
2. 42.2 ~ 48.1 N.m (4.3 ~ 4.9 kgf.m, 31.1 ~ 35.4 lb-ft)

  Fig 17: Transaxle Mounting Bolts
  Courtesy of KIA MOTORS AMERICA, INC.
Remove the transaxle while slowly lower the jack.
NOTE: Be careful not to damage other system or parts near by when removing the transaxle assembly.
