System Inspection

Resetting Adaptive Values
1. Connect GDS to DLC (Data Link Cable).
2. IG "ON" & ENG "OFF"
3. Select the "Vehicle S/W Management" about related DTC with GDS.

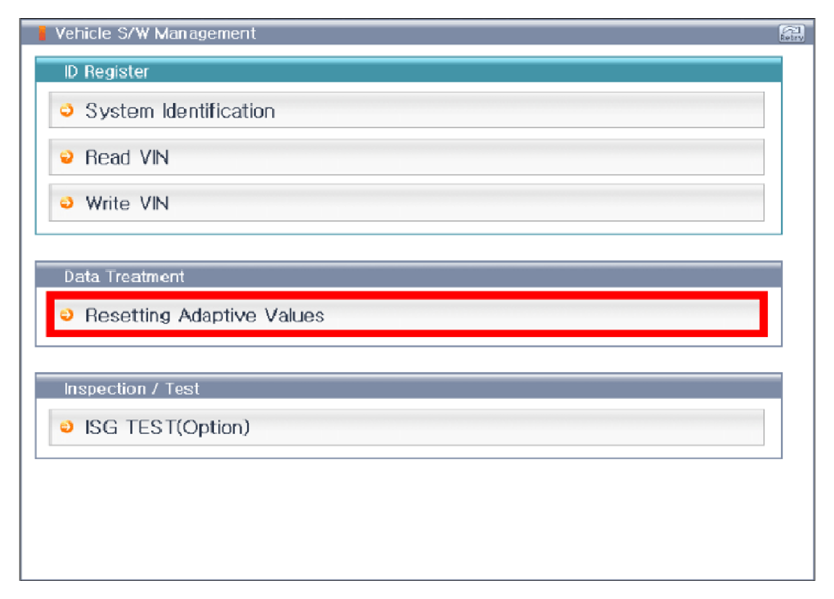

  Fig 1: Scantool Display - Resetting Adaptive Values
  Courtesy of KIA MOTORS AMERICA, INC.
4. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

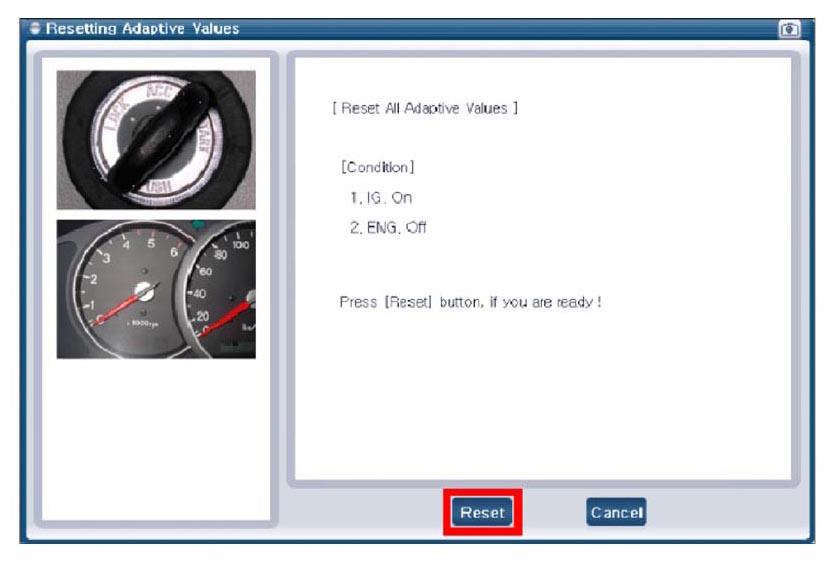

  Fig 2: Scantool Display - Resetting Adaptive Values
  Courtesy of KIA MOTORS AMERICA, INC.
5. Press "Reset" button to progress for next procedure.

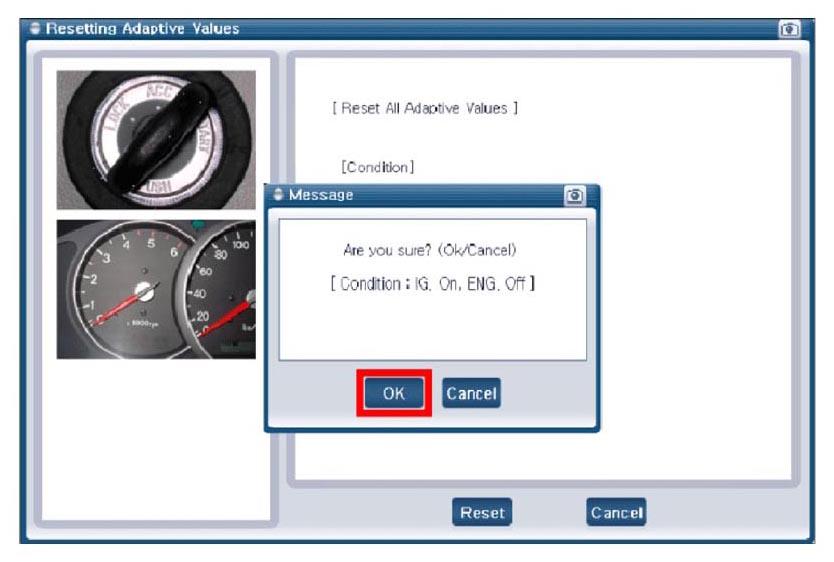

  Fig 3: Scantool Display - Resetting Adaptive Values Confirmation
  Courtesy of KIA MOTORS AMERICA, INC.
6. Press "OK" button (IG ON, ENG OFF).

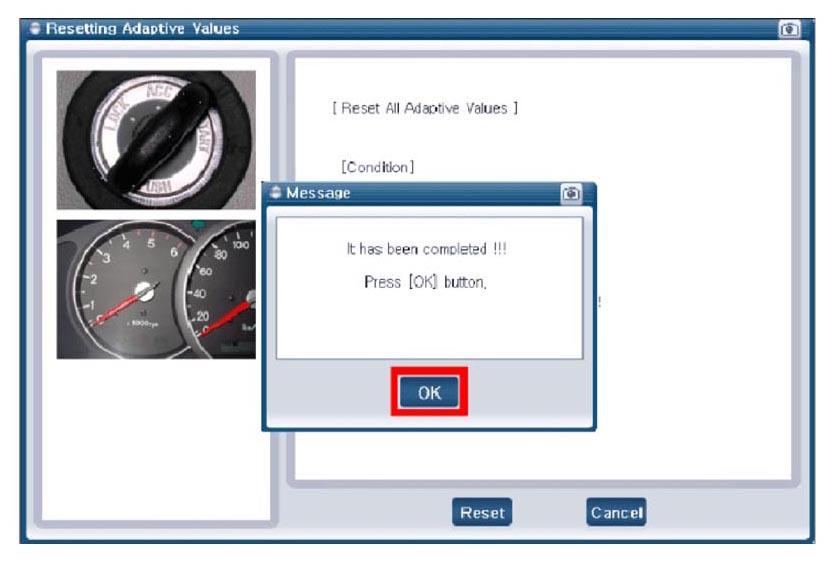

  Fig 4: Scantool Display - Resetting Adaptive Values Completed
  Courtesy of KIA MOTORS AMERICA, INC.
7. When the "Resetting Adaptive Values" has been finished perfectly, press "OK" button and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
