Signal Waveform & Data

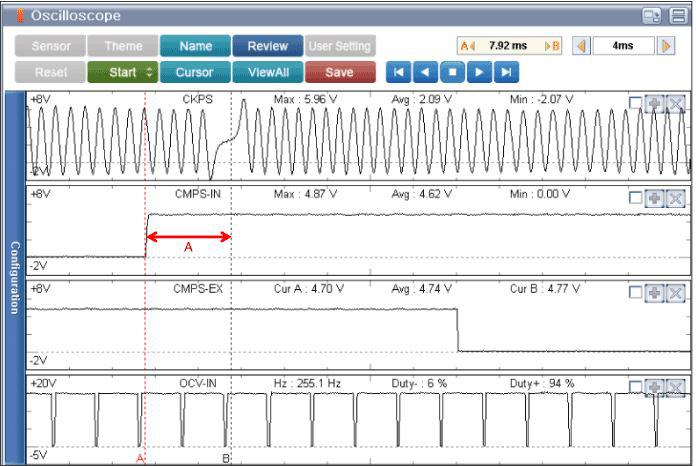

Fig 1: Waveform - CKPS AndCMPS-IN At Engine Idle
G00570185Courtesy of KIA MOTORS AMERICA, INC.

A: CKPS & CMPS (Intake side) synchronization - There are about 4 to 5 teeth between the CKPS missing tooth and CMPS signal
