Repair Procedures: Removal

WARNING: In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don't do any repair work right after engine stops.

Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Release the residual pressure in fuel line.
(Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

CAUTION: When removing the fuel pump relay, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the GDS after completion of "RELEASE RESIDUAL PRESSURE IN FUEL LINE " work.
Remove the intake manifold.
(Refer to "INTAKE MANIFOLD ")
Disconnect the injector connectors (A) and the rail pressure sensor connector (B).
Remove the high pressure fuel pipe (C).
Remove the engine oil gauge.
Remove the installation bolt (D), and then remove the delivery pipe and injector assembly from the engine.

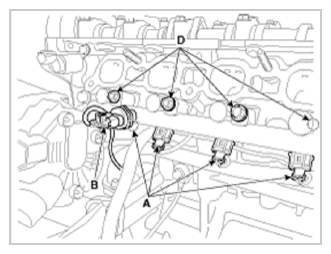

Fig 1: Installation Bolt, Rail Pressure Sensor And Injector Connectors
Courtesy of KIA MOTORS AMERICA, INC.

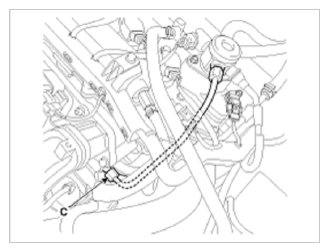

Fig 2: High Pressure Fuel Pipe
Courtesy of KIA MOTORS AMERICA, INC.

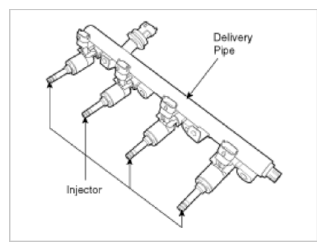

Fig 3: Delivery Pipe And Injector Assembly
Courtesy of KIA MOTORS AMERICA, INC.
