Repair Procedures: Removal

  1. Lift the vehicle.
  2. Disconnect the fuel filler hose (A), leveling hose (B) and the ventilation hose (C).

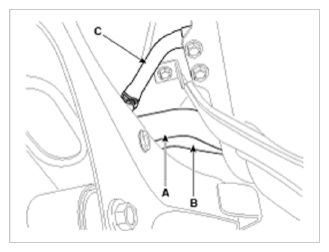

    Fig 1: Fuel Filler Hose, Leveling Hose And Ventilation Hose
    G09747002Courtesy of KIA MOTORS AMERICA, INC.
  3. Open the fuel filler door and then remove the filler-neck mounting bolts (A).

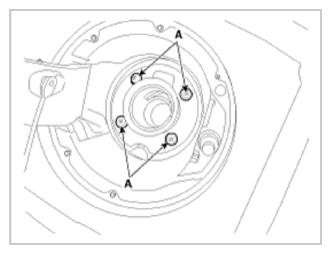

    Fig 2: Filler-Neck Mounting Bolts
    G09747003Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the rear-LH wheel, tire, and the inner wheel house.
  5. Remove the filler-neck assembly from the vehicle after removing the bracket mounting bolt (A).

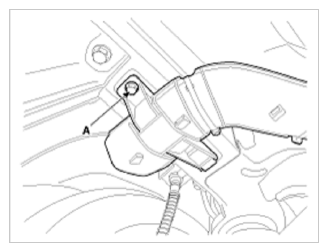

    Fig 3: Bracket Mounting Bolt
    G09747004Courtesy of KIA MOTORS AMERICA, INC.
