Components Location

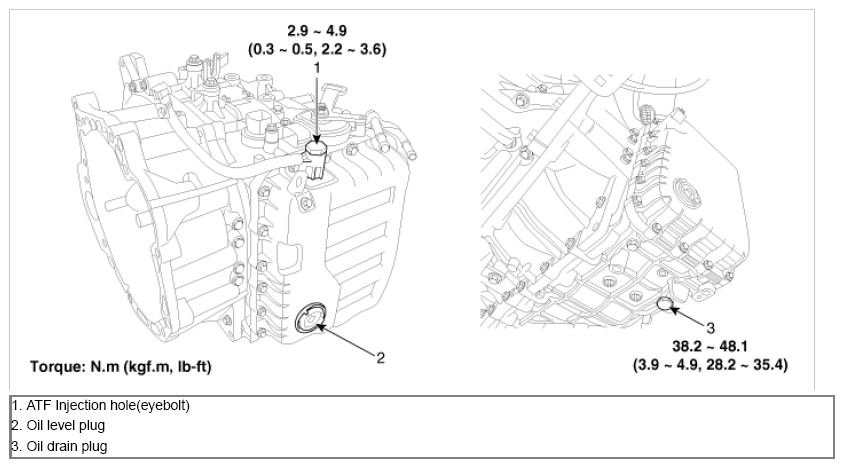

Fig 1: Oil Level Plug, Oil Drain Plug & Eyebolt With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
