Repair Procedures: Replacement

Remove the drain plug (A) and reinstall the drain plug after draining ATF totally.
Drain Plug Tightening Torque: 38.2 ~ 48.1 N.m (3.9 ~ 4.9 kgf.m, 28.2 ~ 35.4 lb-ft)

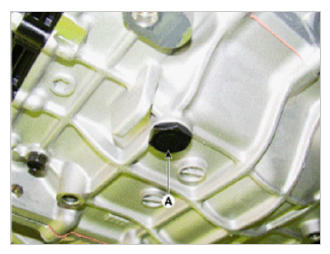

Fig 1: Drain Plug
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: The gasket of the drain plug use new one.
Fill the oil about 5 liters.
Check the oil level.
(Refer to "FLUID ")
