Components Location

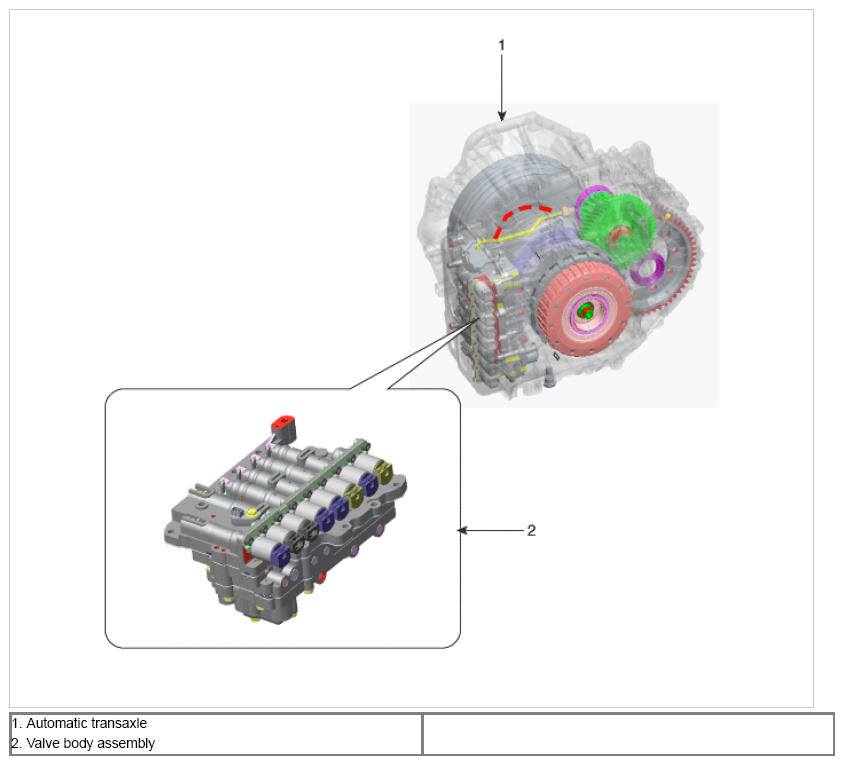

Fig 1: Valve Body Components (1 Of 2)
G09747127Courtesy of KIA MOTORS AMERICA, INC.

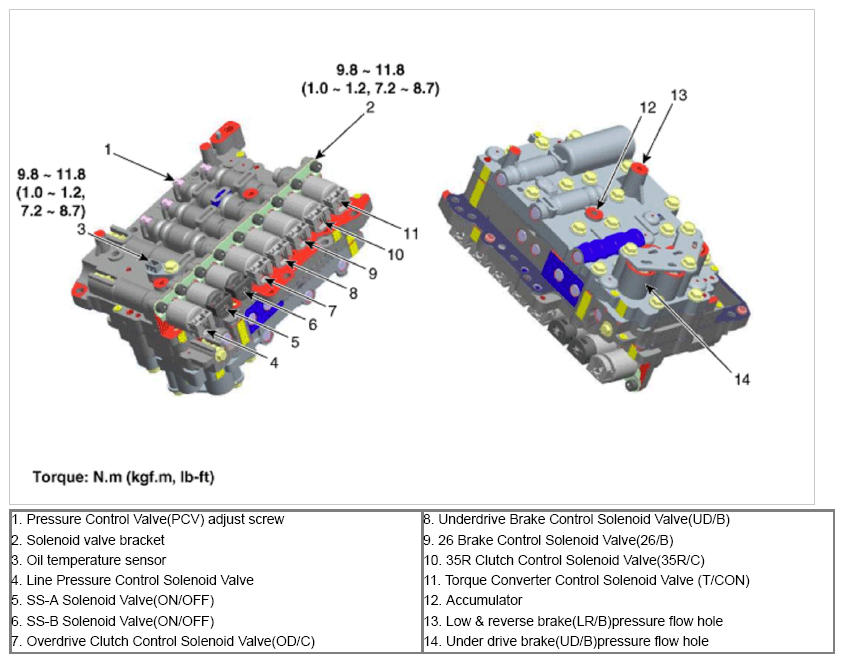

Fig 2: Valve Body Components With Torque Specifications (2 Of 2)
G09747128Courtesy of KIA MOTORS AMERICA, INC.
