Component Inspection

Perform OCV
1. Connect GDS to Data Link Connector (DLC).
2. IG KEY "ON" & ENG "OFF".
3. Perform "Actuation Test " for OCV.

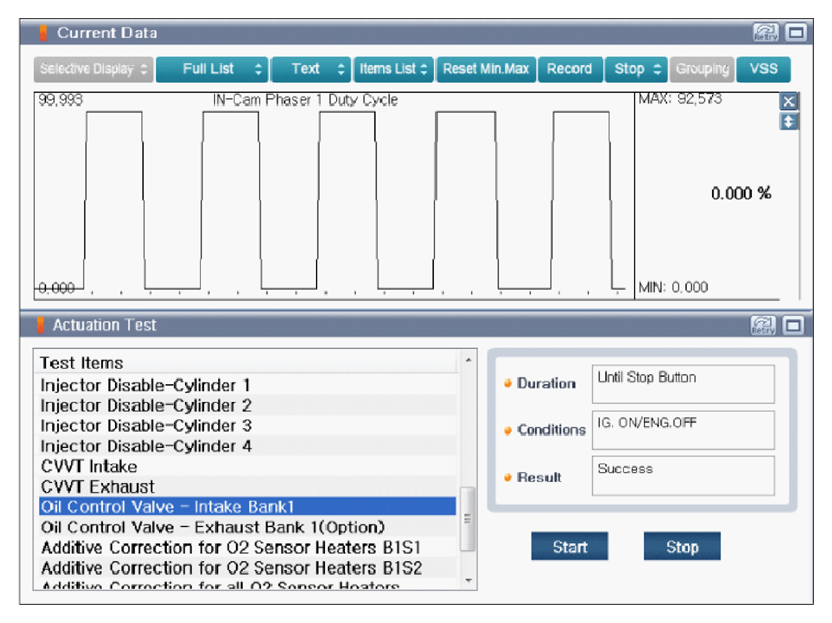

  Fig 1: Scantool Display - Oil Control Valve - Intake Bank 1 Actuation Test
  Courtesy of KIA MOTORS AMERICA, INC.
Inspection OCV
1. IG Key "OFF".
2. Disconnect OCV connector.
3. Measure resistance between power and control terminal of the OCV. (Component Side)
  Specification: Approx. 6.9 ~ 7.9 at 20°C (68 °F)
Confirm Part Inspection
1. Does the OCV work properly? (Check variation)
  YES
  - Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Substitute with a known-good OCV and check for proper operation. If the problem is corrected, replace OCV and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
