Repair Procedures: Replacement

Remove the air cleaner assembly.
(Refer to "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to "BATTERY ")
Disconnect the back up lamp switch connector (A).

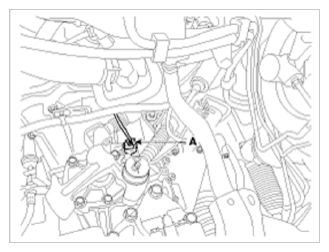

Fig 1: Back Up Lamp Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the back up lamp switch (A).

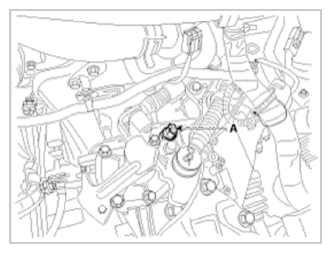

Fig 2: Back Up Lamp Switch
Courtesy of KIA MOTORS AMERICA, INC.
Replace a new one and install the back up lamp switch.
Tightening Torque:

39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)
