Select Cable Adjustment

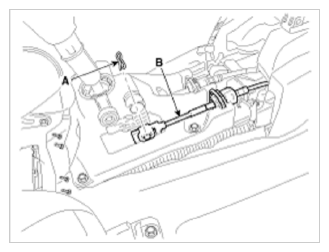

Remove the select cable snap pin (A) and then remove the select cable (B) from the shift lever pin.

Fig 1: Select Cable Snap Pin
Courtesy of KIA MOTORS AMERICA, INC.
Shift the shift lever to 3rd gear.

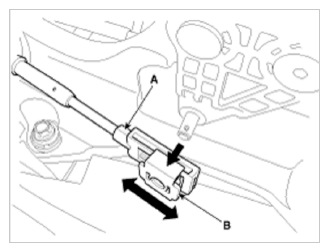

Move the slide clip (B) of guide member (A) in the direction as shown in the illustration.

Fig 2: Moving Slide Clip Of Guide Member
Courtesy of KIA MOTORS AMERICA, INC.

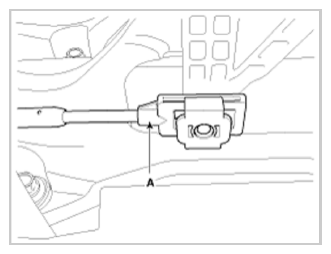

Install the select cable (A).

Fig 3: Installing Select Cable
Courtesy of KIA MOTORS AMERICA, INC.

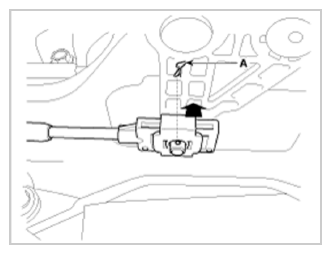

Insert the slide clip in the direction as shown in the illustration and then install the snap pin (A).

Fig 4: Installing Snap Pin
Courtesy of KIA MOTORS AMERICA, INC.
