Repair Procedures: Removal

Remove the floor console assembly.
(Refer to "FLOOR CONSOLE ")

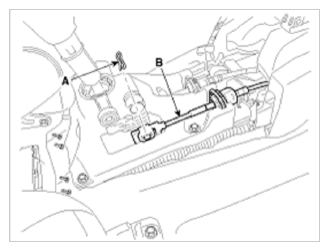

Remove the select cable (B) by removing the snap pin (A).

Fig 1: Removing Select Cable And Snap Pin
Courtesy of KIA MOTORS AMERICA, INC.

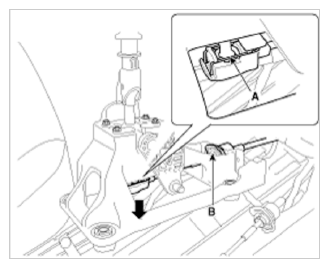

Remove the shift cable (B) after removing the clip (A).

Fig 2: Removing Shift Cable And Clip
Courtesy of KIA MOTORS AMERICA, INC.

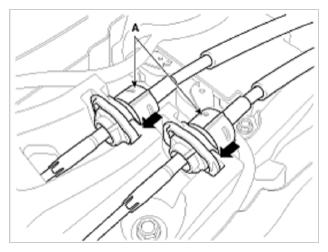

Remove the cable socket (A) from lever assembly after pulling the cable socket clip in the direction of the arrow.

Fig 3: Removing Cable Socket From Lever Assembly
Courtesy of KIA MOTORS AMERICA, INC.

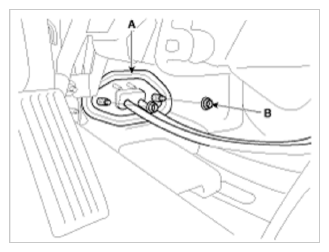

Remove the retainer (A) after loosen the nut (B).

Fig 4: Retainer And Nut
Courtesy of KIA MOTORS AMERICA, INC.
Remove the air cleaner assembly.
(Refer to "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to "BATTERY ")
Remove the shift & select cable.

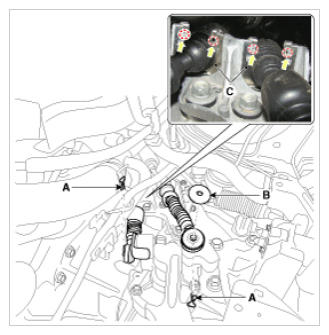

1. Remove the pin (A) and washer (B).
2. Make unlock clip (C) and then remove the shift & select cable and the clip (C) from the bracket.

  Fig 5: Locating Pin, Clip & Washer
  Courtesy of KIA MOTORS AMERICA, INC.
  NOTE:
  - Do not reuse the clip (C).
Remove the shift cable at cabin room.
