Components And Components Location: Component

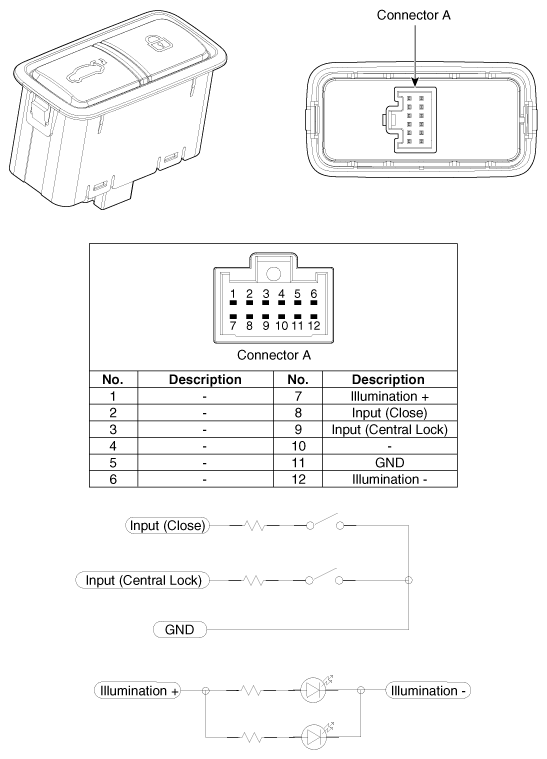

Fig 1: Identifying Power Trunk Inner Switch Connectors
G10715885Courtesy of KIA MOTORS AMERICA, INC.
