Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 5.0L
>>
Engine Control Module (ECM)
>>
Schematic Diagrams
>>
ECM Terminal And Input/Output signal
>>
ECM Harness Connector
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
ECM Harness Connector

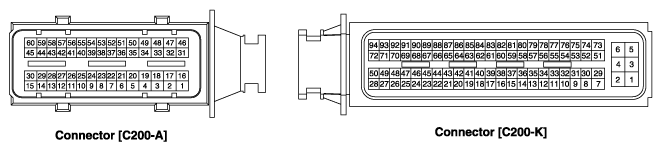

Fig 1: Identifying ECM Harness Connector
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
