Trouble Diagnostics When Using GDS

Fig 1: Locating Data Link Connector

Courtesy of KIA MOTORS AMERICA, INC.

The Body Control Module can diagnose by using the GDS more quickly.
The BCM communicates with the GDS and then reads the input/output value and drives the actuator.
To diagnose the BCM function, select the menu of model and body control module.
To consult the present input/output value of BCM, "Current DATA". It provides information of BCM input/output conditions of power supply, turn signal/brake lamp, headlamp, door, locks, outside mirror, wiper, auto-light and transmitters etc.

BCM Service data

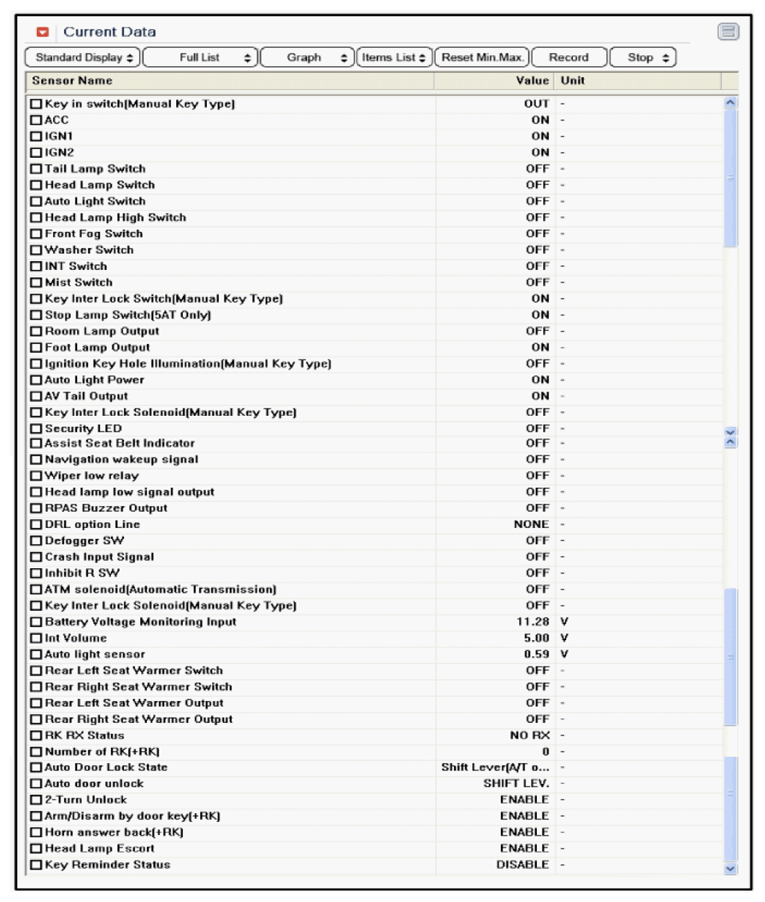

Fig 2: Scantool Display - BCM Service Data
Courtesy of KIA MOTORS AMERICA, INC.
CLU (Cluster) Service data

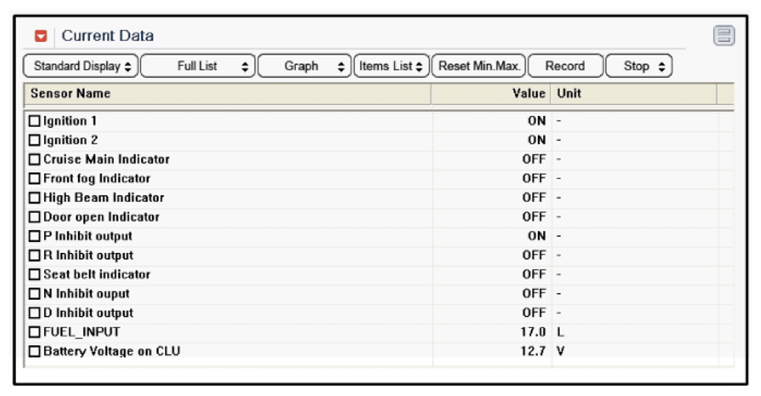

Fig 3: Scantool Display - CLU (Cluster) Service Data
Courtesy of KIA MOTORS AMERICA, INC.
SJB (Smart Junction Box) Service data

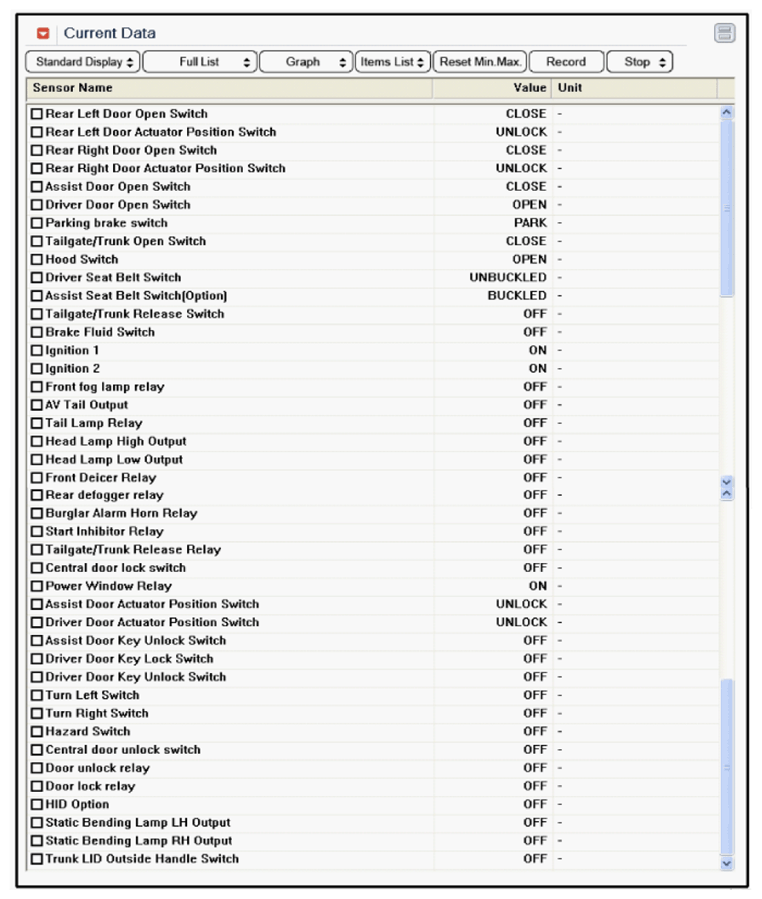

Fig 4: Scantool Display - SJB (Smart Junction Box) Service Data
Courtesy of KIA MOTORS AMERICA, INC.
To perform compulsory operation on BCM input factors, select "ACTUATION TEST".

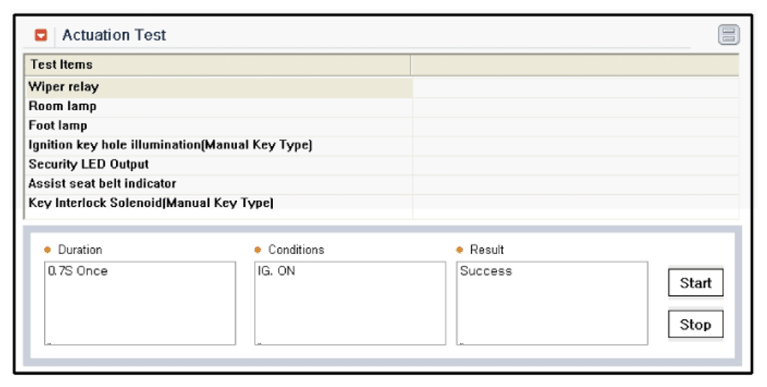

Fig 5: Scantool Display - Actuation Test
Courtesy of KIA MOTORS AMERICA, INC.
