AVN (A/V & Navigation) Head Unit Connector

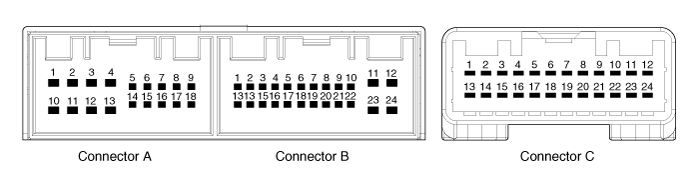

Fig 1: AVN System Connector Terminal End View (Head Unit Connector)
G00548362G07380616G07380617G07380618G07380619G07380620Courtesy of KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.KIA MOTORS AMERICA, INC.
CONNECTOR TERMINAL REFERENCE CHART

NO Connector A (18pin) Connector B (24pin) Connector C (24pin)
1 - MM CAN H -
2 Back view video - -
3 Back view video ground Parking (M/T type) -
4 Back view power ground Steering remote control -
5 SPDIF ground - -
6 SPDIF + IGN -
7 - - -
8 Illumination + AUX right input -
9 R position AUX ground -
10 - MIC+ -
11 Back view power ACC Door open
12 Navigation voice (+) Battery (+) -
13 Navigation voice (-) MM CAN low -
14 - Auto light -
15 SPDIF (-) P position (A/T type) -
16 Door unlock Speed -
17 Illumination (-) Steering key ground -
18 Antenna remote - -
19 - -
20 AUX detect -
21 AUX left input -
22 MIC (-) Ground
23 Power ground Ground
24 Power ground -
RADIO ANTENNA SPECIFICATIONS CHART

Radio antenna 1 No. Description No. Description
G07380616Courtesy of KIA MOTORS AMERICA, INC.
 1 FM1/AM 2 -
RADIO ANTENNA SPECIFICATIONS CHART

Radio antenna 2 No. Description No. Description
G07380617Courtesy of KIA MOTORS AMERICA, INC.
 1 - 2 FM2
RADIO ANTENNA SPECIFICATIONS CHART

USB connector No. Description No. Description
G07380618Courtesy of KIA MOTORS AMERICA, INC.
 1 USB Ground 3 USB D (+)
2 USB D (-) 4 USB VCC
RADIO ANTENNA SPECIFICATIONS CHART

SIRIUS antenna No. Description No. Description
G07380619Courtesy of KIA MOTORS AMERICA, INC.
 1 SIRIUS Signal 2 Ground
RADIO ANTENNA SPECIFICATIONS CHART

GPS antenna No. Description No. Description
G07380620Courtesy of KIA MOTORS AMERICA, INC.
 1 GPS Signal 2 Ground

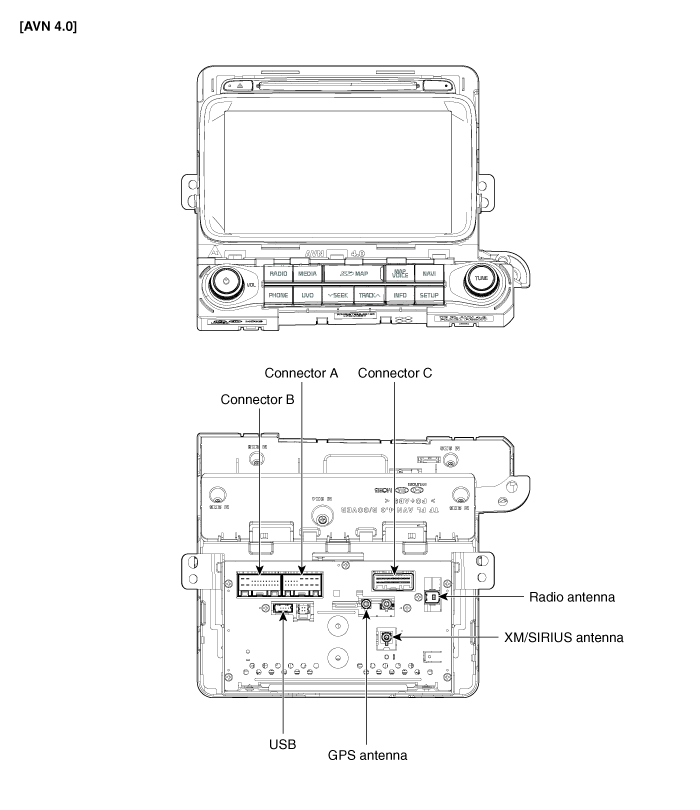

Fig 2: AVN (4.0) Unit
G00548363Courtesy of KIA MOTORS AMERICA, INC.
Fig 3: AVN (A/V & Navigation) Head Unit Connector
G00548364Courtesy of KIA MOTORS AMERICA, INC.

Connector Pin Information

AVN HEAD UNIT SPECIFICATIONS CHART

No. Connector A (18pin) Connector B (24pin) Connector C (24pin)
1 - MM CAN high C CAN (-)
2 - - C CAN (+)
3 - - -
4 - Steering remote control -
5 SPDIF ground - -
6 SPDIF (+) MTS key -
7 - AUX video -
8 Illumination (+) AUX right input -
9 Reverse AUX ground -
10 - MIC (+) -
11 - Battery (+) B CAN (+)
12 - Battery (+) B CAN (-)
13 - MM CAN low -
14 IGN 1 Auto light Airbag (USA)/ - (CANADA)
15 SPDIF (-) - -
16 Door unlock Speed Navigation voice (-)
17 Illumination (-) Steering key ground Navigation voice (+)
18 Antenna remote ACC Door open
19 AUX video ground -
20 AUX Detect -
21 AUX left input Main power ground
22 MIC (-) Video ground
23 Power ground Camera video input
24 Power ground Camera battery (+)
RADIO ANTENNA SPECIFICATIONS CHART

Radio antenna 1 No. Description No. Description
G07380616Courtesy of KIA MOTORS AMERICA, INC.
 1 FM1/AM 2 FM2
RADIO ANTENNA SPECIFICATIONS CHART

USB connector No. Description No. Description
G07380618Courtesy of KIA MOTORS AMERICA, INC.
 1 USB Ground 3 USB D (+)
2 USB D (-) 4 USB VCC
RADIO ANTENNA SPECIFICATIONS CHART

SIRIUS antenna No. Description No. Description
G07380619Courtesy of KIA MOTORS AMERICA, INC.
 1 XM/SIRIUS Signal 2 Ground
RADIO ANTENNA SPECIFICATIONS CHART

GPS antenna No. Description No. Description
G07380620Courtesy of KIA MOTORS AMERICA, INC.
 1 GPS Signal 2 Ground

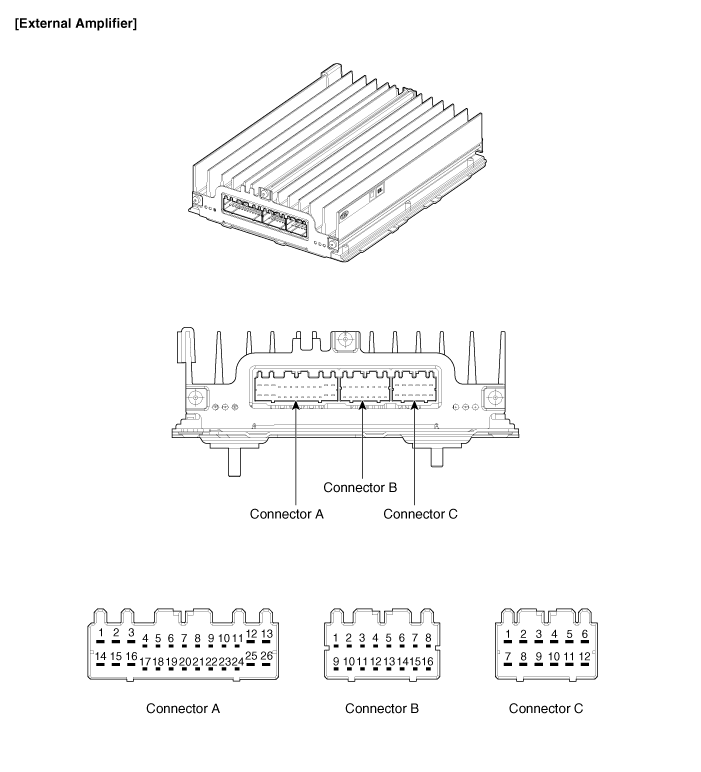

Fig 4: External Amplifier And Connectors
G00548365Courtesy of KIA MOTORS AMERICA, INC.
AVN HEAD UNIT SPECIFICATIONS CHART

Pin No. Connector A (26 pin) Connector B (16 pin) Connector C (12 pin)
1 Battery (+) Front right mid-range speaker (+) Rear right door speaker (+)
2 Battery (+) Front left mid-range speaker (+) Rear left door speaker (+)
3 Battery (+) - Front right mid-range speaker (+)
4 - - Front left mid-range speaker (+)
5 M CAN high - Front right door speaker (+)
6 M CAN low - Front left door speaker (+)
7 ACC Front center speaker (+) Rear right door speaker (-)
8 - - Rear left door speaker (-)
9 - Front right mid-range speaker (-) Front right mid-range speaker (-)
10 - Front left mid-range speaker (-) Front left mid-range speaker (-)
11 Navigation (+) Front left mid-range speaker (-) Front right door speaker (-)
12 Sub-Woofer 2 (+) - Front left door speaker (-)
13 Sub-Woofer 1 (+) - -
14 Ground - -
15 Ground Front center speaker (-) -
16 Ground - -
17 - - -
18 SPDIF (+) - -
19 SPDIF (-) - -
20 SPDIF ground - -
21 - - -
22 - - -
23 - - -
24 Navigation (-) - -
25 Sub-Woofer 2 (-) - -
26 Sub-Woofer 1 (-) - -

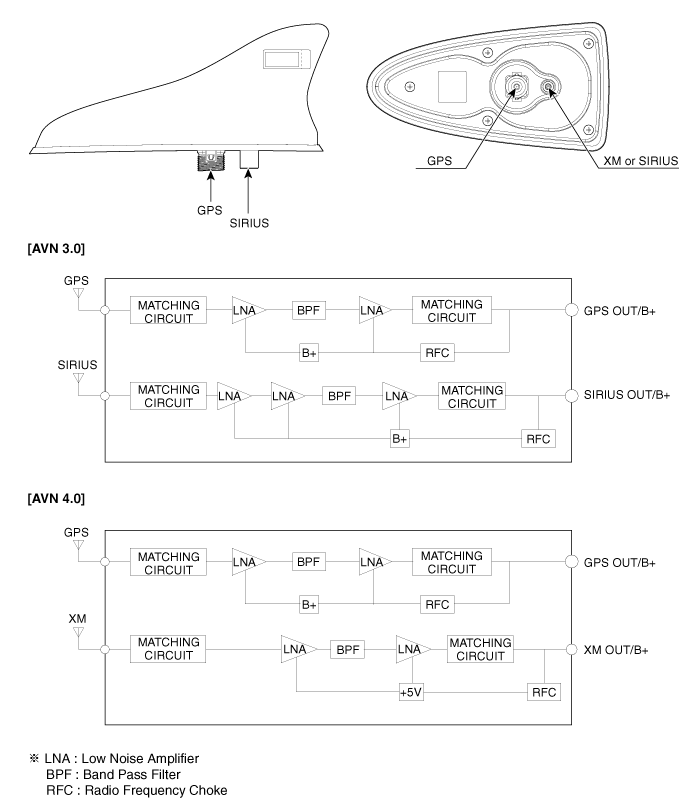

Fig 5: Roof Antenna Circuit Diagram
G00548366Courtesy of KIA MOTORS AMERICA, INC.
