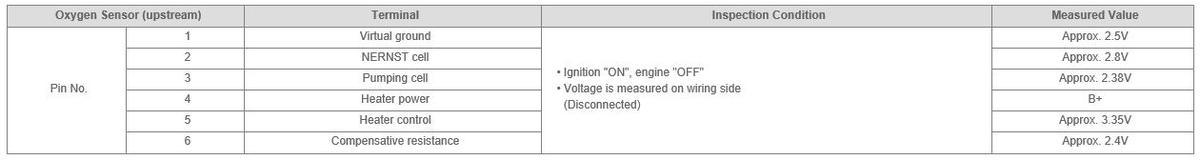

Signal Waveform & Data

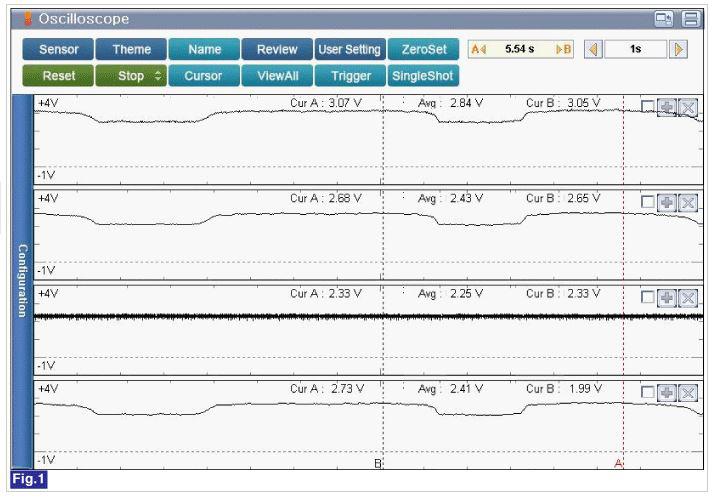

(Fig.1) Normal waveform of front Heated Oxygen Sensor upstream (Bank 1, Sensor 1) with engine at idle.
Oscilloscope - CH A1 (Nernst Cell), CH A2 (Pumping Cell), CH B1 (Virtual Ground), CH B2 (Compensative Resistance).
(Fig.1) Normal waveform of front Heated Oxygen Sensor upstream (Bank 1, Sensor 1) with engine at idle.
Oscilloscope - CH A1 (Nernst Cell), CH A2 (Pumping Cell), CH B1 (Virtual Ground), CH B2 (Compensative Resistance).
