Signal Waveform & Data

  1. IG key ON.
  2. Check sensor data as below.

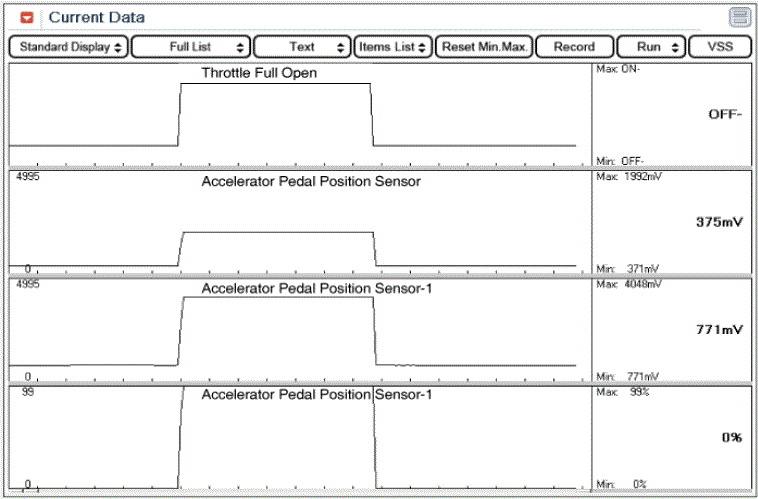

    Fig 1: APPS Voltage Data
    G00536213Courtesy of KIA MOTORS AMERICA, INC.
  3. Data Analysis
    APS DATA ANALYSIS

    Accelerator Position Output Voltage (V)
    APS1 APS2
    C.T 0.7 ~ 0.8 0.29 ~ 0.46
    W.O.T 3.85 ~ 4.35 1.93 ~ 2.18

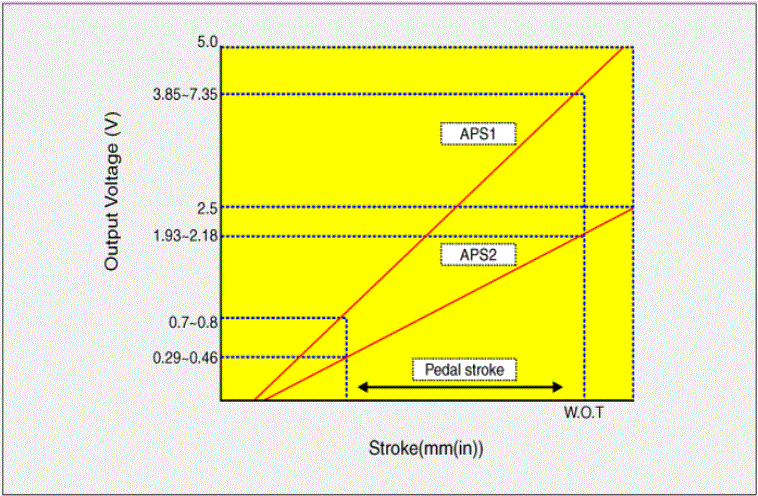

    Fig 2: APPS Voltage Graph
    G00536214Courtesy of KIA MOTORS AMERICA, INC.
  4. Is data in accordance with "Data Analysis"?

    YES

    • Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    • Go to next procedure.
