Variant Coding Procedure

On-Line Type on GDS
1. With the ignition "OFF", connect GDS.
2. Ignition "ON" & Engine "OFF" select vehicle name and airbag system.
3. Select Variant coding mode.
4. Follow steps on the screen as below.

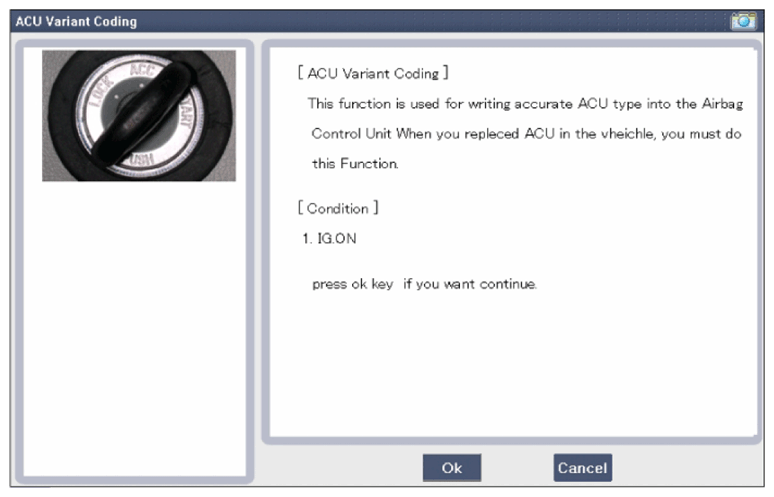

  1. Initial ACU Variant Coding screen

    Fig 1: Scantool Display - Initial ACU Variant Coding Screen
    Courtesy of KIA MOTORS AMERICA, INC.

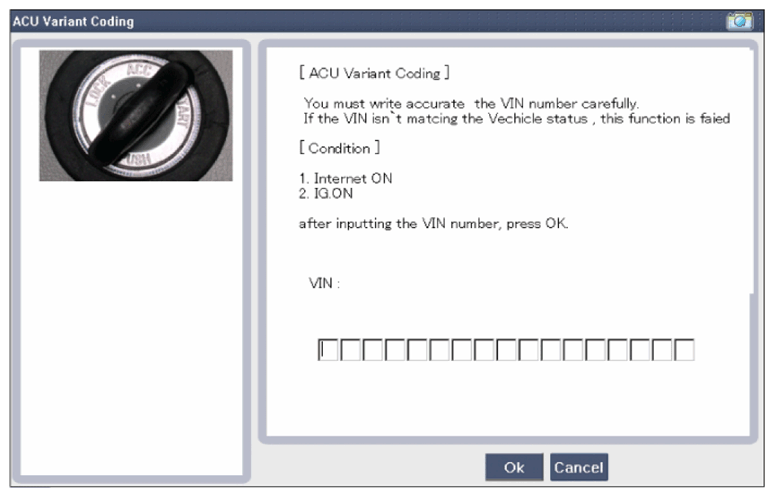

  2. VIN Code entering screen

    Fig 2: Scantool Display - VIN Code Entering Screen
    Courtesy of KIA MOTORS AMERICA, INC.

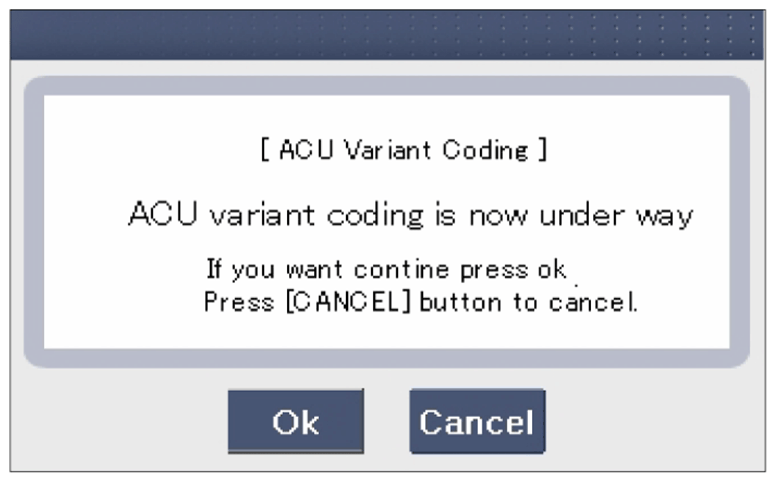

  3. Variant coding's proceeding screen - 1.

    Fig 3: Scantool Display - Variant Coding's Proceeding Screen
    Courtesy of KIA MOTORS AMERICA, INC.

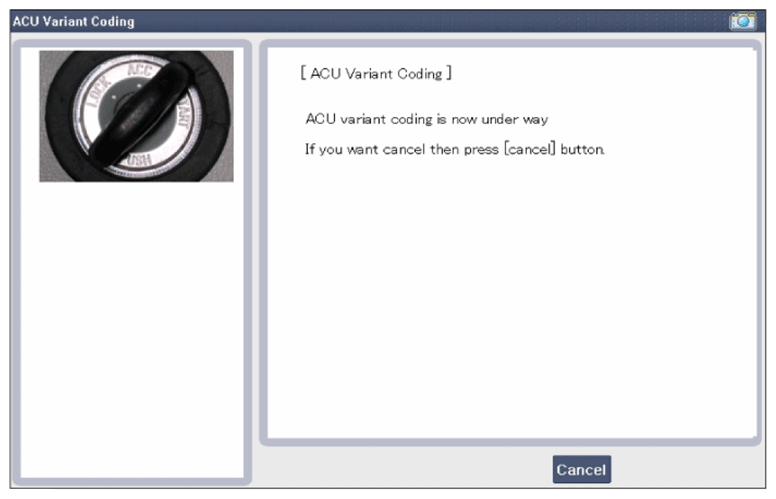

  4. Variant coding's proceeding screen - 2

    Fig 4: Scantool Display - Variant Coding's Proceeding Screen
    Courtesy of KIA MOTORS AMERICA, INC.

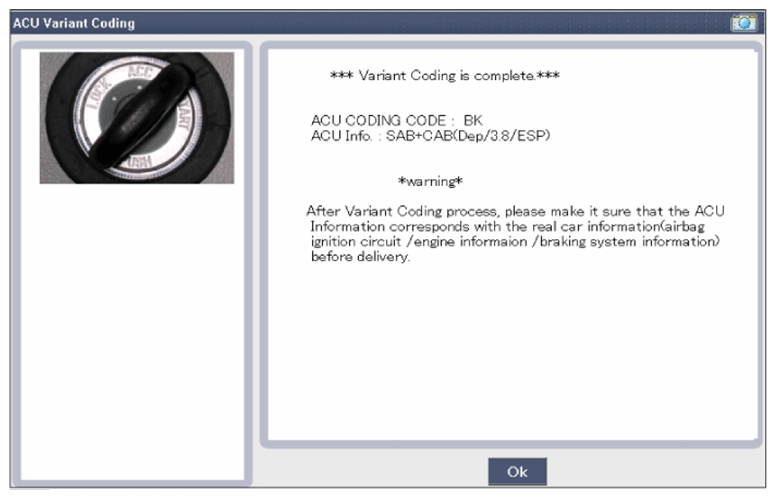

  5. Variant coding is completed

    Fig 5: Scantool Display - Variant Coding Is Completed
    Courtesy of KIA MOTORS AMERICA, INC.

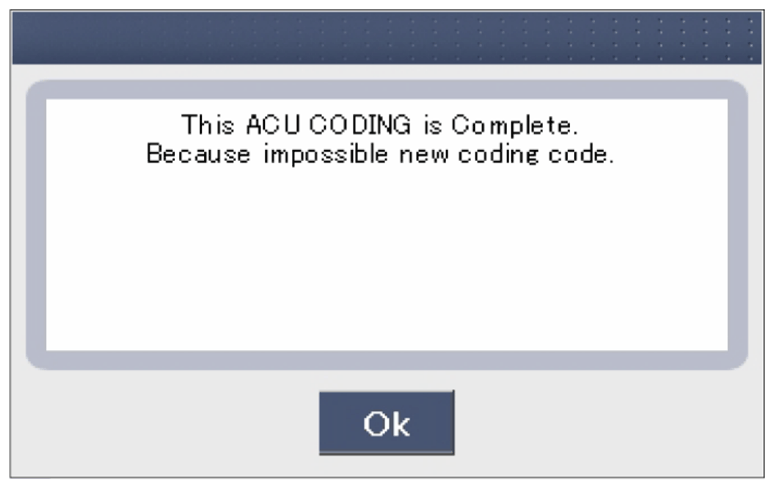

    NOTE:
    This screen is opened when you try the variant coding again on the SRSCM that already has the variant coding performed.

    Fig 6: Scantool Display - Variant Coding Already Completed
    Courtesy of KIA MOTORS AMERICA, INC.

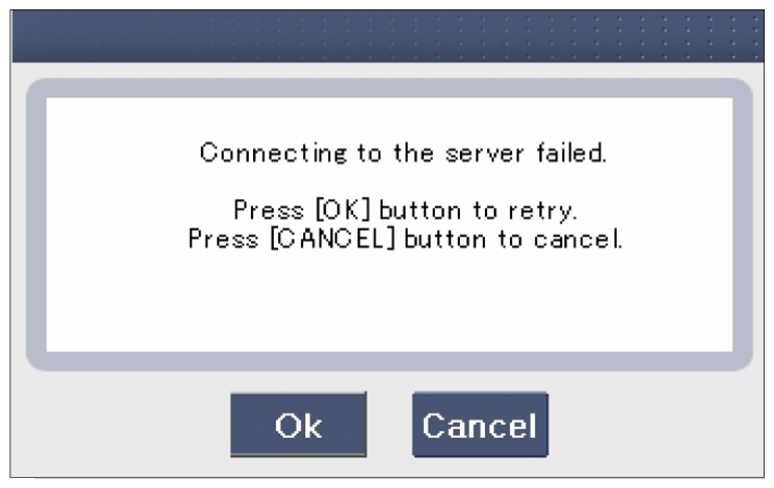

    If communication fails, the following screen will appear.

    Fig 7: Scantool Display - Communication Fails
    Courtesy of KIA MOTORS AMERICA, INC.
Off-Line Type on GDS (This can be used when not connecting to Internet)

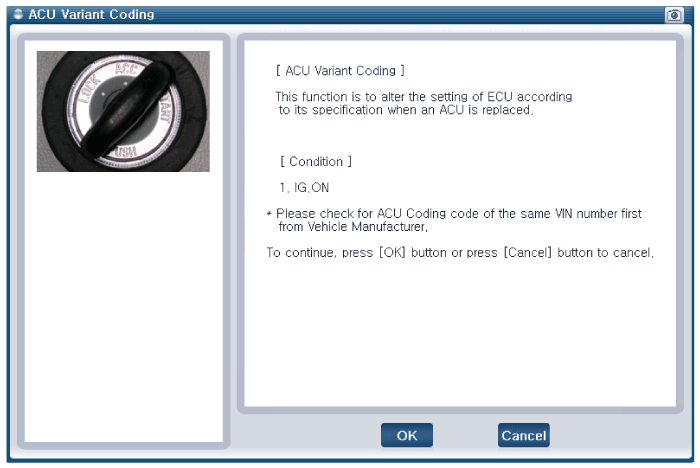

1. Initial ACU Variant Coding screen

  Fig 8: Scantool Display - Initial ACU Variant Coding Screen
  Courtesy of KIA MOTORS AMERICA, INC.

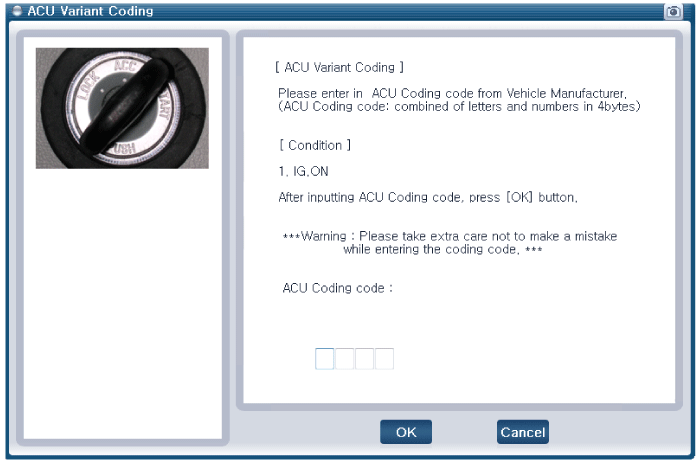

2. ACU Coding Code entering screen

  Fig 9: Scantool Display - ACU Coding Code Entering Screen
  Courtesy of KIA MOTORS AMERICA, INC.
3. Screen of rechecking ACU Coding code's entering

  Fig 10: Scantool Display - Screen Of Rechecking ACU Coding Code's Entering
  Courtesy of KIA MOTORS AMERICA, INC.

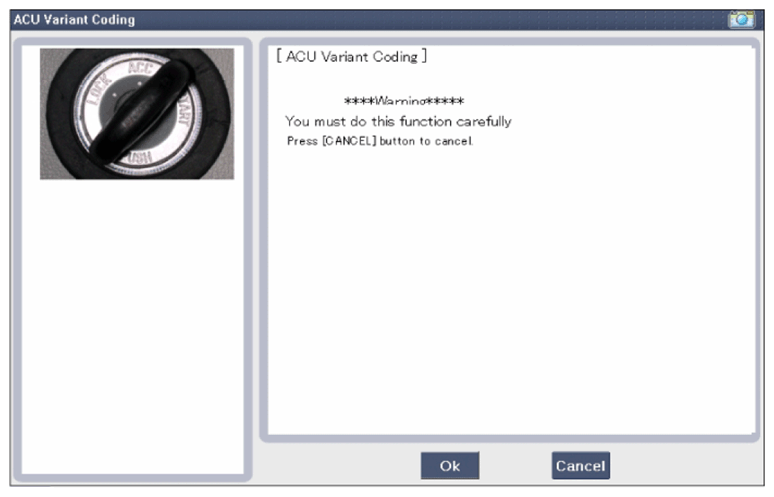

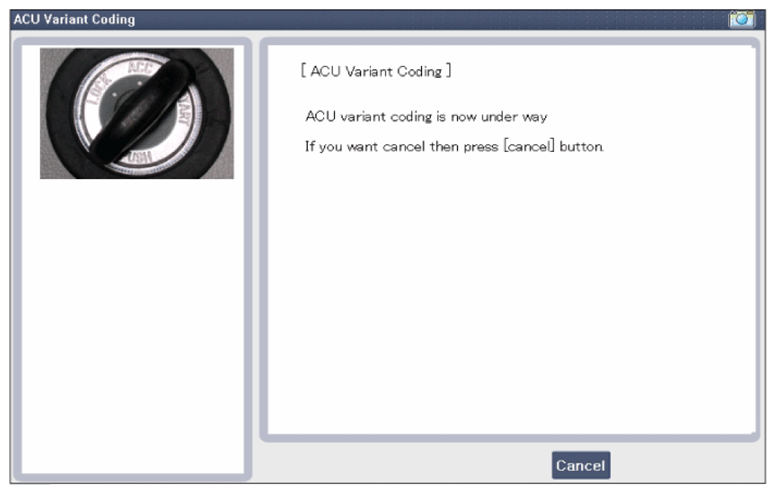

4. Variant coding's proceeding screen-1

  Fig 11: Scantool Display - Variant Coding's Proceeding Screen-1
  Courtesy of KIA MOTORS AMERICA, INC.
5. Variant coding's proceeding screen-2

  Fig 12: Scantool Display - Variant Coding's Proceeding Screen-2
  Courtesy of KIA MOTORS AMERICA, INC.
6. Variant coding is completed

  Fig 13: Scantool Display - Variant Coding Is Completed
  Courtesy of KIA MOTORS AMERICA, INC.
  NOTE:
  1. This screen is opened when you try the variant coding again on the SRSCM that already has the variant coding performed.

    Fig 14: Scantool Display - Variant Coding Already Completed
    Courtesy of KIA MOTORS AMERICA, INC.
