Supplemental Restraint System Control Module (SRSCM) & Sensors - Optima (Except HEV)
>>
Weight Classification System (WCS)
>>
Schematic Diagrams
>>
Circuit Diagram (1)
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram (1): Notes

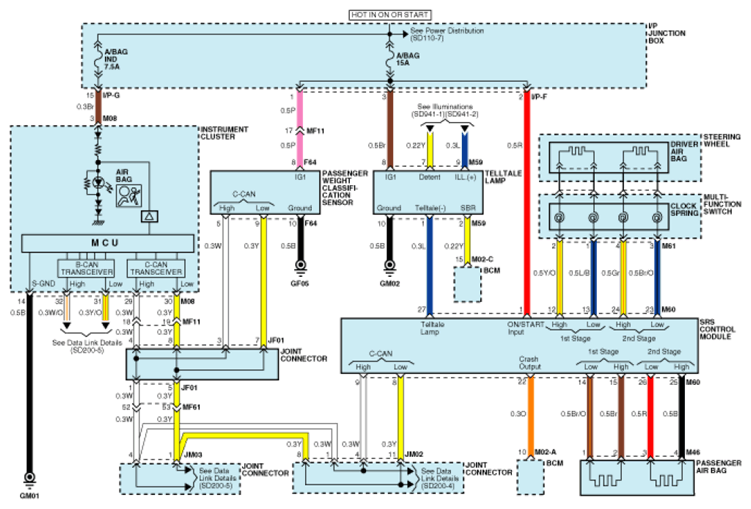

Fig 1: Weight Classification System Circuit Diagram (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
