Signal Waveform

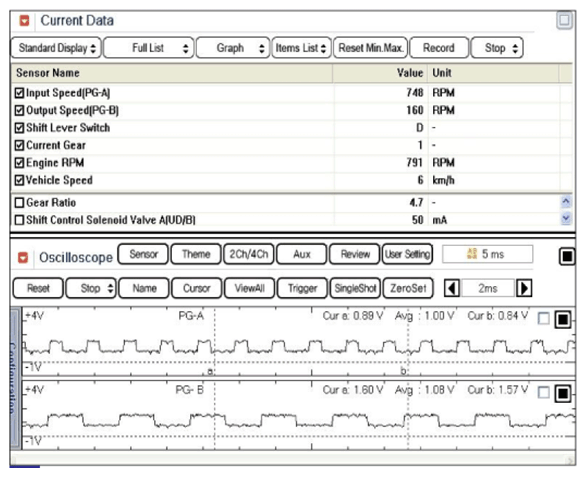

Fig 1: Signal Waveform - Input/Output Speed Sensor At Low Speed

Courtesy of KIA MOTORS AMERICA, INC.

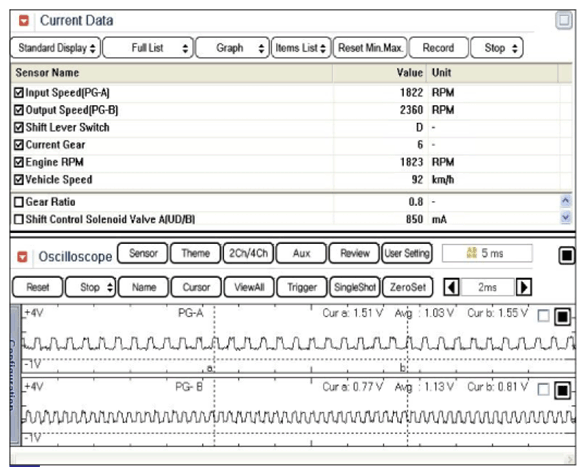

Fig 2: Signal Waveform - Input/Output Speed Sensor At High Speed

Courtesy of KIA MOTORS AMERICA, INC.

Fig 21) Input/Output Speed Sensor at low speed

Fig 22) Input/Output Speed Sensor at high speed
