Monitor Scantool Data

WARNING: This page is about a different car, the 2014 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

Connect GDS.
IG "ON" and engine "OFF".
Select "DTC Analysis" mode.
After erasing DTC, keep the vehicle condition within "the enable conditions" Refer to DTC DETECTING CONDITION table.

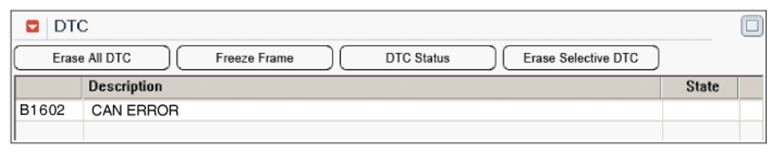

Fig 1: Scantool Display - DTC (CAN Error)
Courtesy of KIA MOTORS AMERICA, INC.
Is the same DTC occurred again?
YES
- Go to next procedure.
NO
- Fault is intermittent caused by poor contact in the PSM's connector or was repaired and PSM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to VERIFICATION OF VEHICLE REPAIR procedure.
