Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Lift the vehicle.
  3. Remove the canister. (Refer to Canister )
  4. Support the fuel tank with a jack and then remove the right fuel tank band (A).

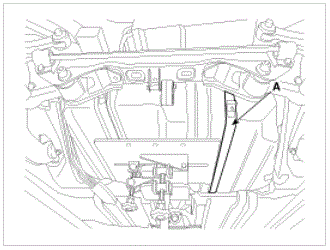

    Fig 1: Right Fuel Tank Band
    G00548718Courtesy of KIA MOTORS AMERICA, INC.
  5. Make a gap for removing the fuel tank pressure sensor by lowering the jack.
  6. Remove the fuel tank pressure sensor (A) after releasing the hooks.

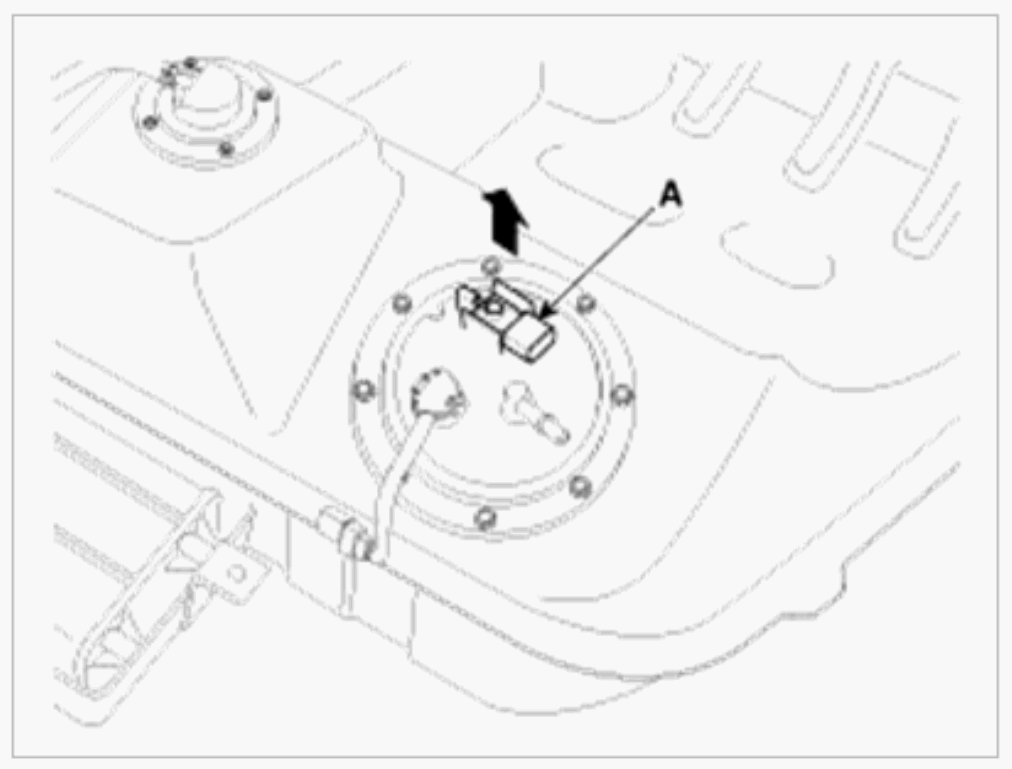

    7. Fig 2: Removing Fuel Tank Pressure Sensor
    G00529397Courtesy of KIA MOTORS AMERICA, INC.
