Circuit Diagram

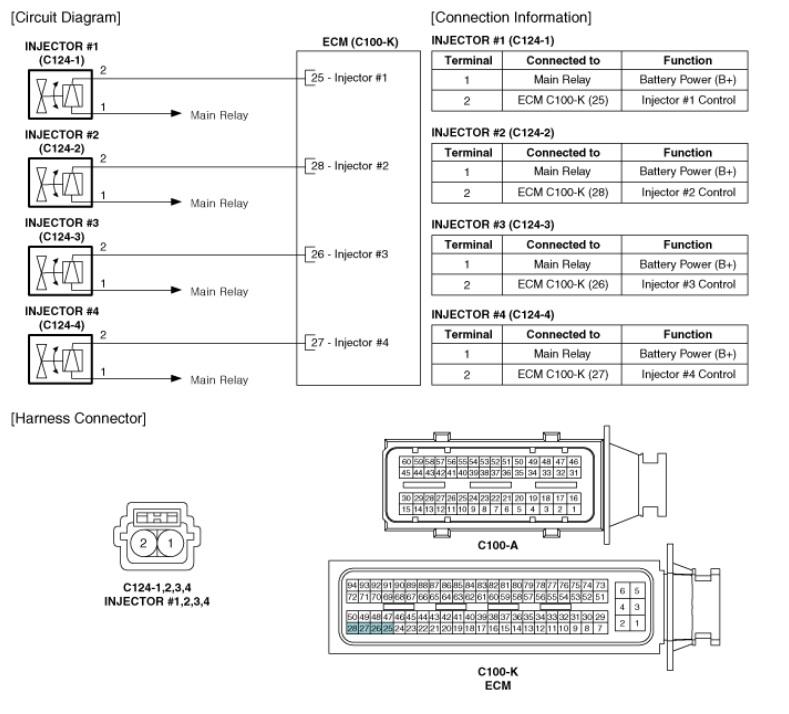

Fig 1: Injector Circuit Diagram With Connector Terminal Identification
G00570380Courtesy of KIA MOTORS AMERICA, INC.
