Monitor DTC Status

Connect GDS to Data Link Connector(DLC).
Ignition "ON".
Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

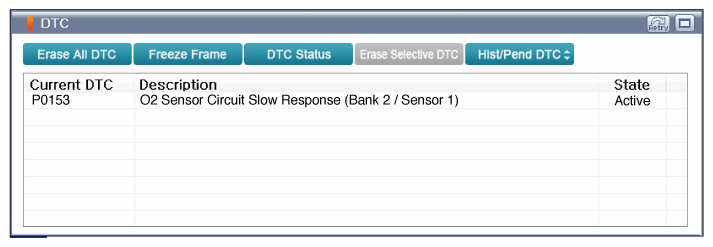

Fig 1: Screen Display - Diagnostic Trouble Code Description
Courtesy of KIA MOTORS AMERICA, INC.
Is DTC status displayed as Present?
YES
- Go to "MONITOR GDS DATA " procedure.
NO
- Go to "Verification Of Vehicle Repair " procedure.
