Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis (1 Of 4)
>>
DTC P0091: Fuel Pressure Regulator 1 Control Circuit Low
>>
Specification
>>
Signal Waveform & Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform & Data

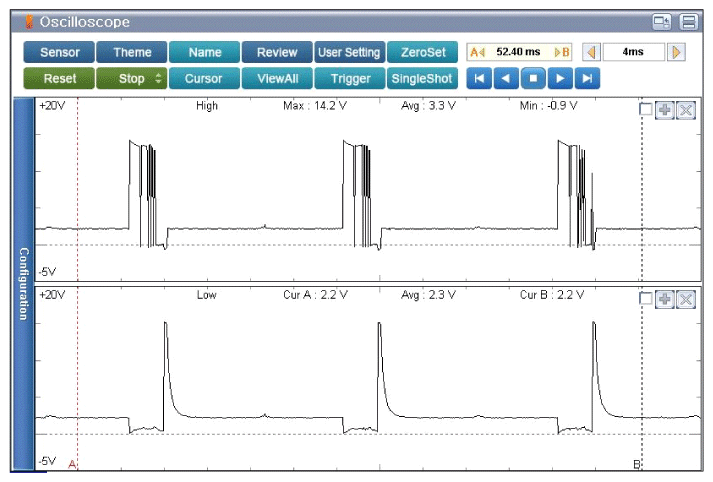

Fig 1: Screen Display - Signal Waveform Of FPR At Engine Idle
Courtesy of KIA MOTORS AMERICA, INC.

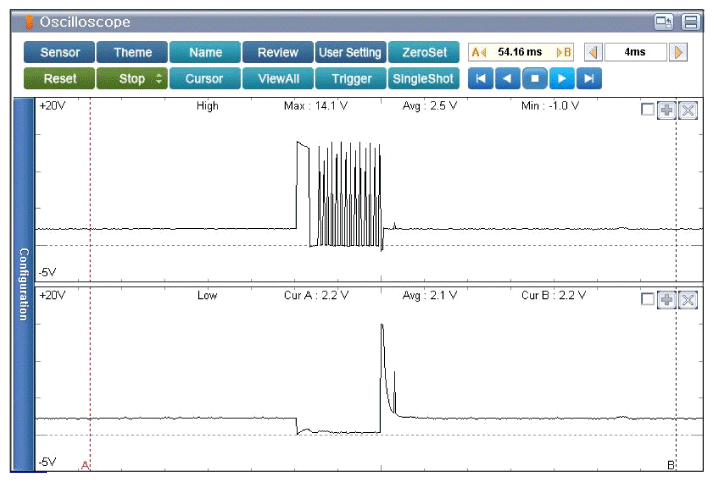

Fig 2: Screen Display - Signal Waveform Of FPR At Approx 2000rpm
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
