System Inspection

■ Resetting Adaptive Values

1. Connect GDS to Data Link Cable (DLC).
2. IG "ON" & ENG "OFF".
3. Select the "Vehicle S/W Management" about related DTC with GDS.

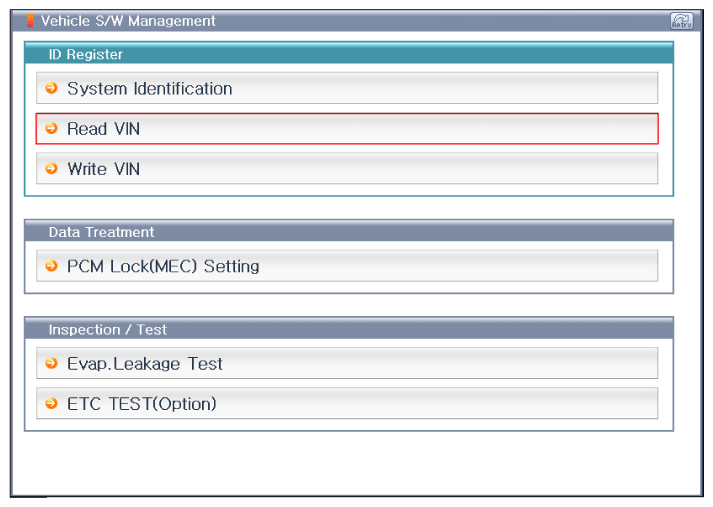

   Fig 1: Screen Display - Select Read VIN

   Courtesy of KIA MOTORS AMERICA, INC.

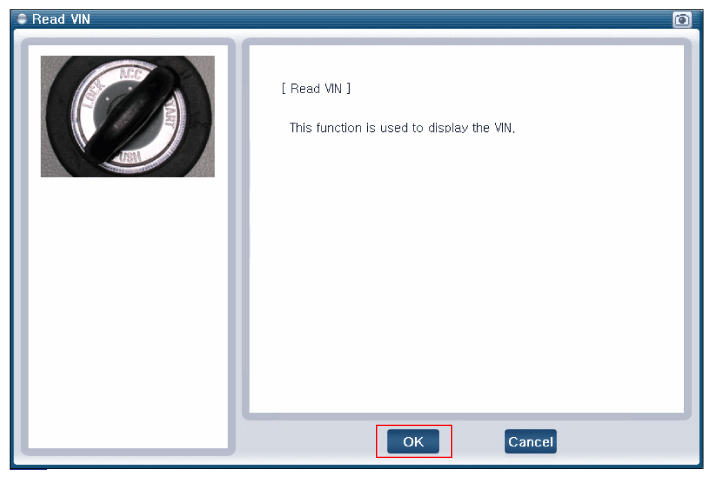

   Fig 2: Screen Display - Press OK Button (IG ON And Engine OFF)

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 3: Screen Display - Check VIN Number (Completed)

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 4: Screen Display - Select Write VIN

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 5: Screen Display - Press OK Button (IG ON And Engine OFF)

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 6: Screen Display - Check VIN Number (Completed)

   Courtesy of KIA MOTORS AMERICA, INC.
4. When the "Read VIN, Write VIN" has been finished perfectly, press "OK" button and go to "Verification Of Vehicle Repair " procedure.
