Smart Key Control Module Connector End View (M10-A)

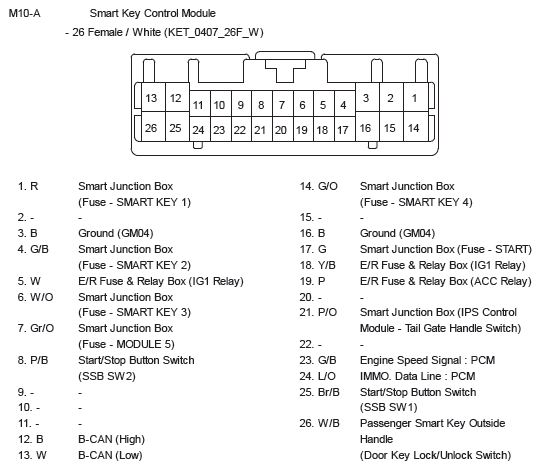

Fig 1: Smart Key Control Module Connector End View (M10-A)
