Component Inspection

Check APS
1. Connect GDS to DLC (Data Link Cable).
2. Warm up the engine to normal operating temperature.
3. Check the "Current Data " about related DTC with GDS.

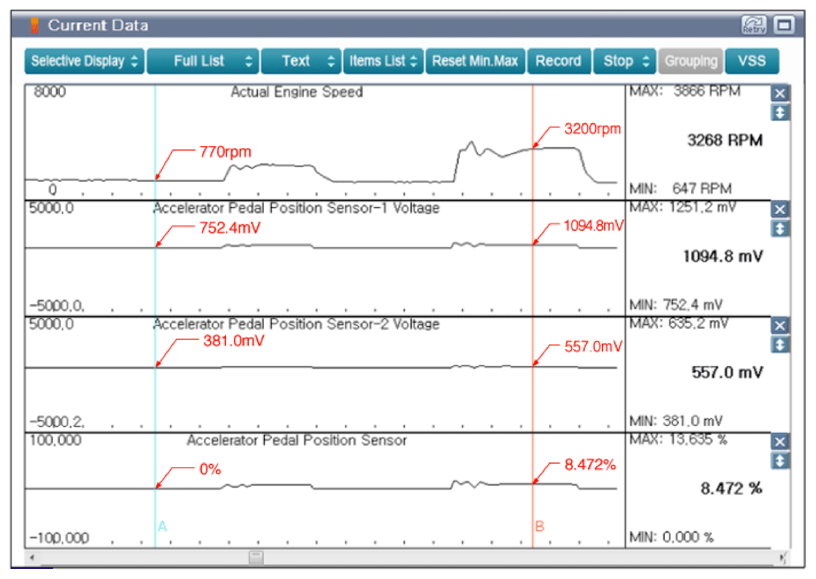

  Fig 1: Display - Engine Idle After Warm Up Approx. 3200rpm At Acceleration Screen
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured signal waveform O.K?
  YES
  - Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Carefully re-do this troubleshooting guide steps.
  - If problem still occurs, replace APS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
