Repair Procedures: Replacement

Information

• Take care to not let the tail gate fall on you as the lifts are removed. Have a helper hold the tail gate open, or use a secure method to hold it open.

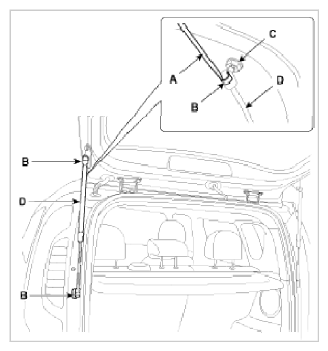

1. Using a screwdriver (A), lift up slightly the socket clips (B) of both ends on the lifter (D), and then remove the lifter from the bracket (C).
   Fig 1: Removing Lifter From Bracket

   Courtesy of KIA MOTORS AMERICA, INC.
2. Install in the reverse order of removal.

   Information

   • Make sure the tail gate locks and opens properly and locks securely.
