Repair Procedures: Disassembly

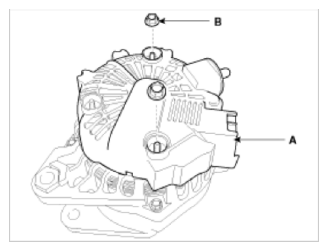

Remove the rear cover (A) after removing nuts (B).

Fig 1: Rear Cover And Nuts
Courtesy of KIA MOTORS AMERICA, INC.

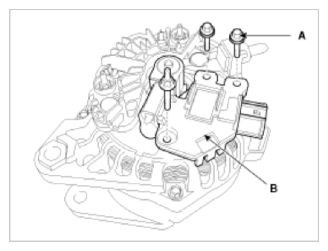

Remove the mounting bolts (A) and the regulator assembly (B).

Fig 2: Regulator Assembly And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

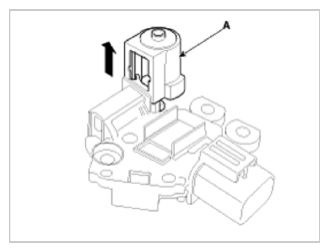

Remove the slip ring guide (A) after pulling it.

Fig 3: Removing Slip Ring Guide
Courtesy of KIA MOTORS AMERICA, INC.
Remove the OAD (Overrunning Alternator Decoupler) cap.
NOTE:
- When installing, replace with new OAD cap.

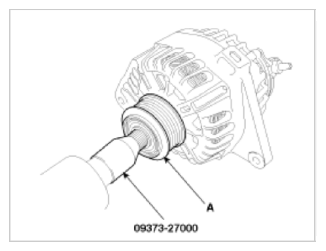

Remove the OAD (Overrunning Alternator Decoupler) pulley (A) using the special tool.

Fig 4: Removing Overrunning Alternator Decoupler Pulley
Courtesy of KIA MOTORS AMERICA, INC.

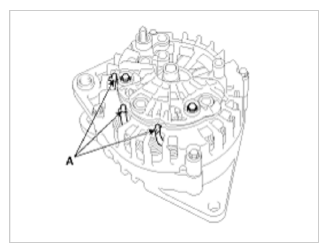

Unsolder the 3 stator leads (A).

Fig 5: Stator Leads
Courtesy of KIA MOTORS AMERICA, INC.

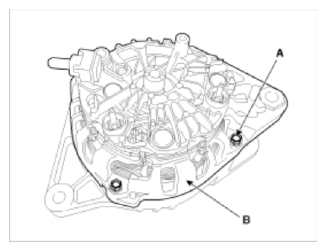

Remove the 4 through bolts (A).

Fig 6: Bolts
Courtesy of KIA MOTORS AMERICA, INC.

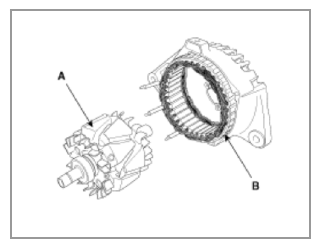

Disconnect the rotor (A) and housing (B).

Fig 7: Rotor And Housing
Courtesy of KIA MOTORS AMERICA, INC.
