Repair Procedures: Removal

Turn ignition switch OFF and disconnect the battery negative (-) terminal.
Remove the drive belt.
(Refer to DRIVE BELT )
Disconnect the alternator connector (A) and the cable (B) from alternator "B" terminal.

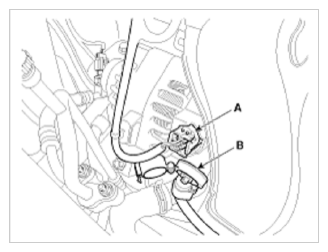

Fig 1: Alternator Connector And Cable From Alternator
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front engine hanger (A).

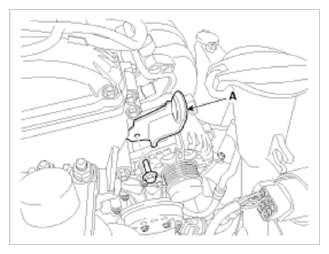

Fig 2: Front Engine Hanger
Courtesy of KIA MOTORS AMERICA, INC.
Pull out the through bolt and then remove the alternator (A).

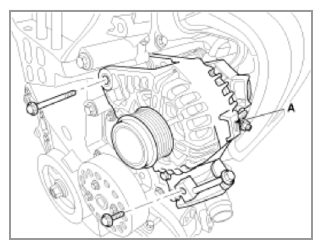

Fig 3: Alternator
Courtesy of KIA MOTORS AMERICA, INC.
