Components and Components Location: Components

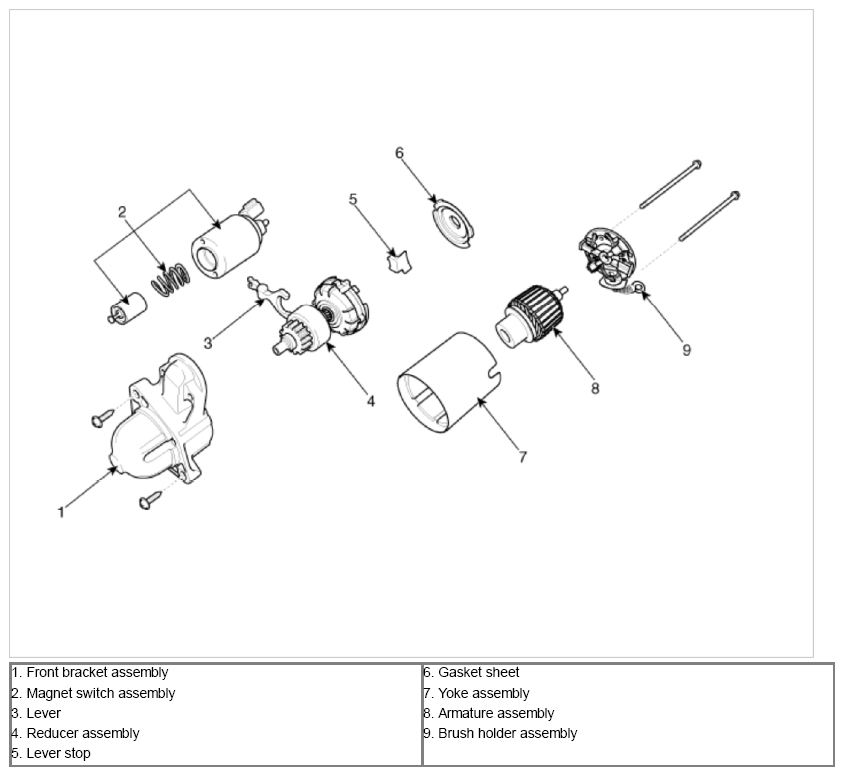

Fig 1: Starter Related Components

G09779127

Courtesy of KIA MOTORS AMERICA, INC.
