Engine Control System Diagnosis (1 Of 2) - 2.0L
>>
DTC P0092: Fuel Pressure Regulator 1 Control Circuit High
>>
Specification
>>
Signal Waveform & Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform & Data

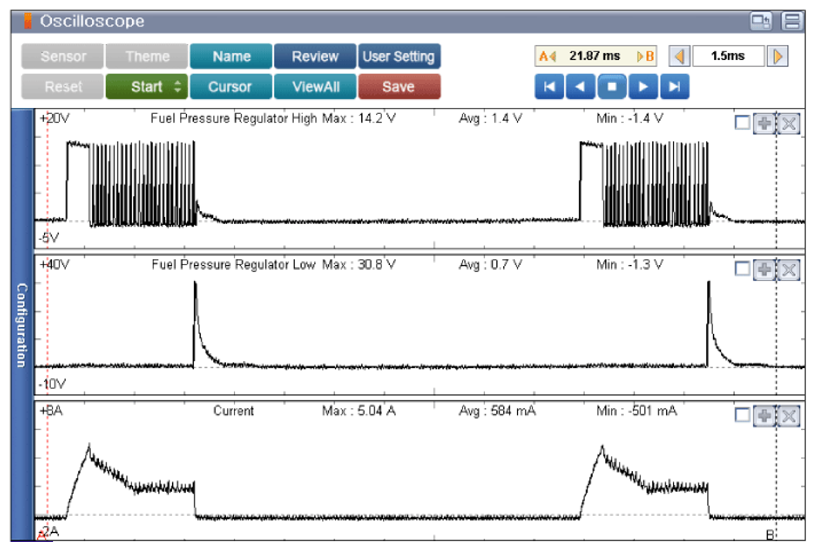

Fig 1: Display - Fuel Pressure Regulator Waveform Screen (Engine Idle After Warm Up)
Courtesy of KIA MOTORS AMERICA, INC.

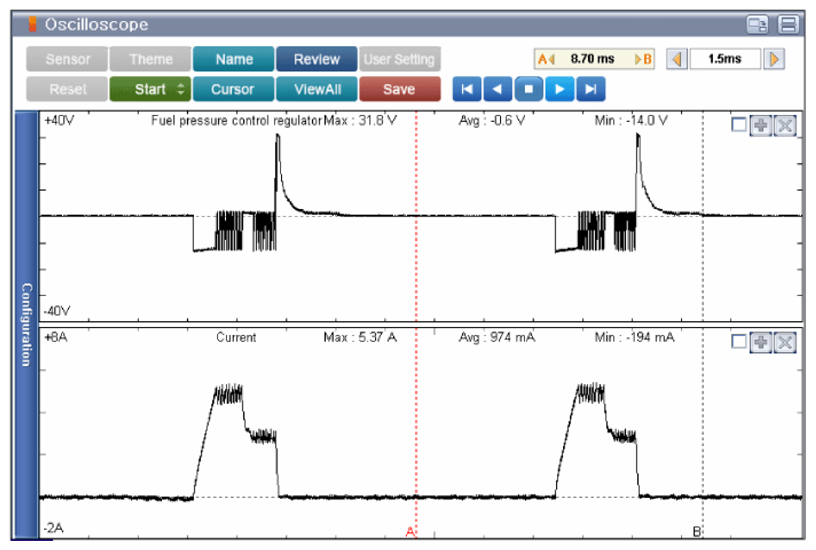

Fig 2: Display - Fuel Pressure Regulator Waveform Screen (Approx. 2000rpm)
Courtesy of KIA MOTORS AMERICA, INC.

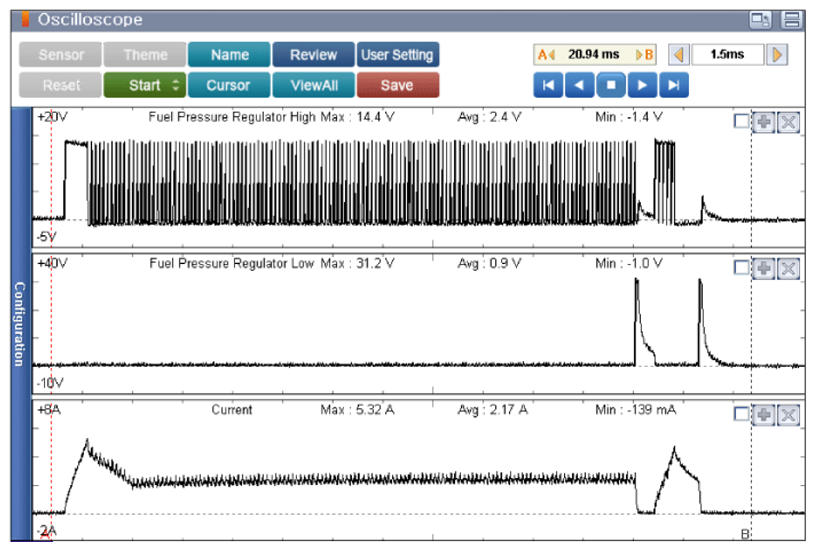

Fig 3: Display - Fuel Pressure Regulator Waveform Screen (Approx. 3000rpm)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
