Terminal And Connector Inspection

Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Has a problem been found?

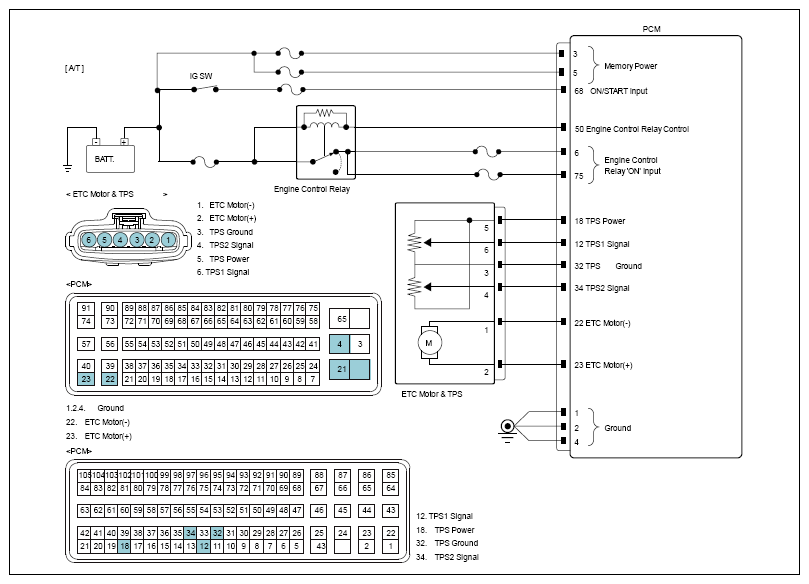

Fig 1: Throttle Position Sensor - Circuit Diagram (A/T)
Courtesy of KIA MOTORS AMERICA, INC.

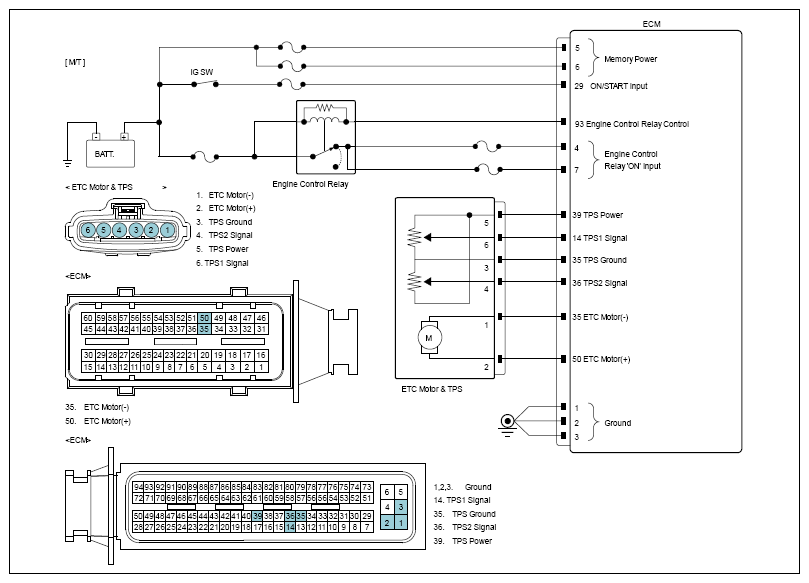

Fig 2: Throttle Position Sensor - Circuit Diagram (M/T)
Courtesy of KIA MOTORS AMERICA, INC.

YES
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "POWER CIRCUIT INSPECTION " procedure.
