Signal Waveform & Data

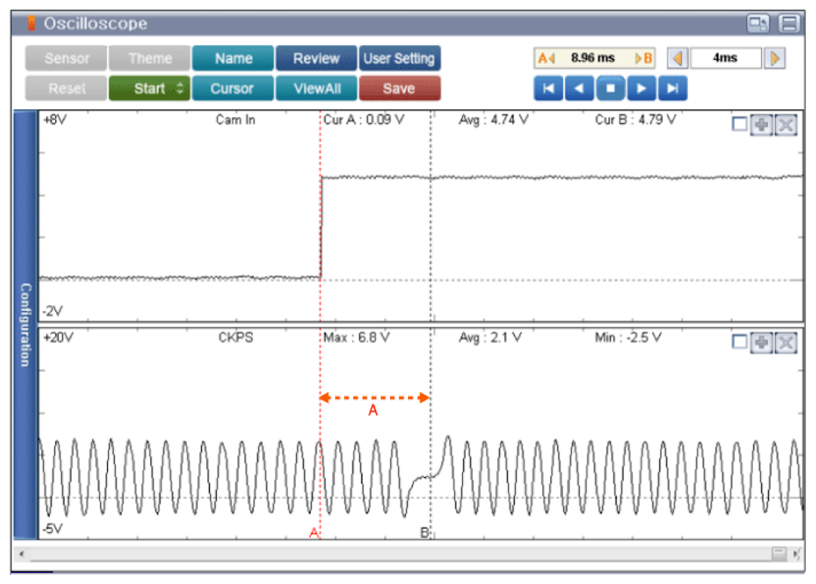

Fig 1: Display - Normal Waveforms Of CKPS, CMPS-IN At Engine Idle Screen
G09781160Courtesy of KIA MOTORS AMERICA, INC.

A: CKPS & CMPS (Intake side) synchronization - There are about 4~5 teeth between the CKPS missing tooth and CMPS signal.
