Signal Waveform & Data

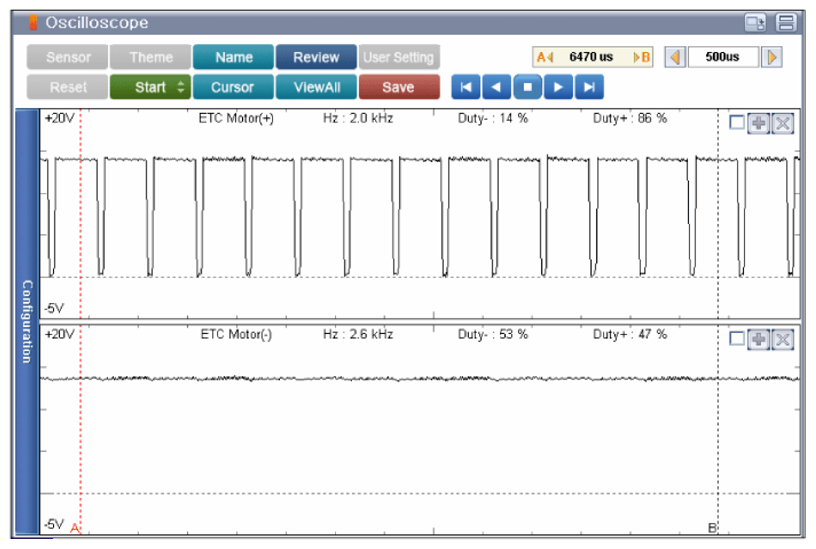

Fig 1: Display - Engine Idle After Warm Up Signal Waveform Screen

Courtesy of KIA MOTORS AMERICA, INC.

ETC Motor(+) → Duty(+) Approx. 86%

Duty(-) Approx. 14%

ETC Motor(-) → Not in Control

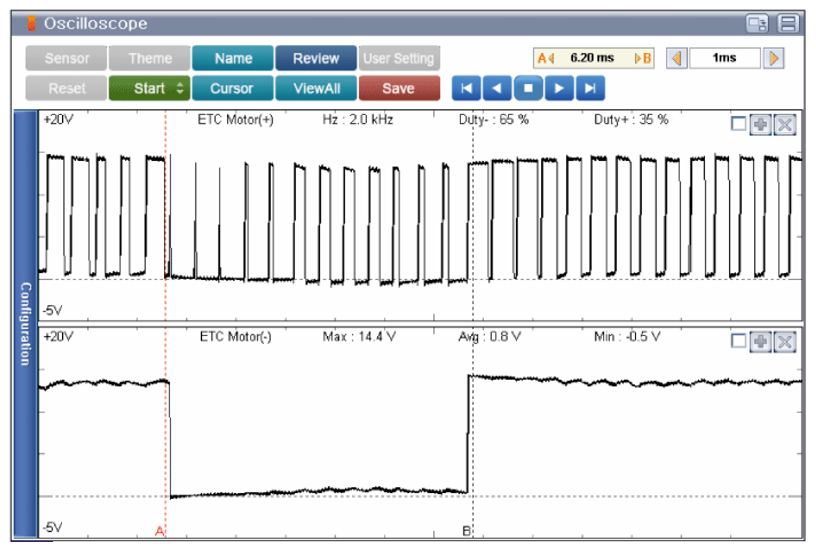

Fig 2: Display - Waveform Of ETC Motor Operation Immediate (When Engine Accelerating Screen)

Courtesy of KIA MOTORS AMERICA, INC.
