Signal Waveform & Data

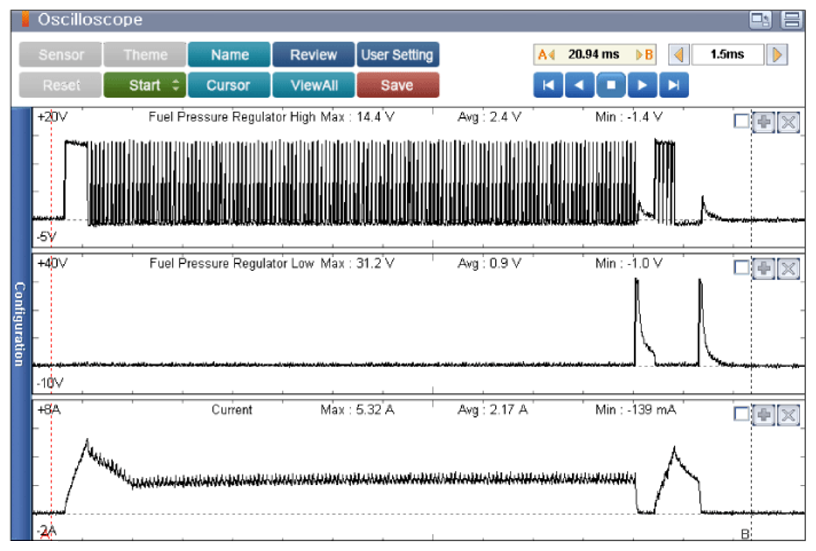

Fig 1: Display - Engine Idle After Warm Up Signal Waveform Screen
G09781651Courtesy of KIA MOTORS AMERICA, INC.

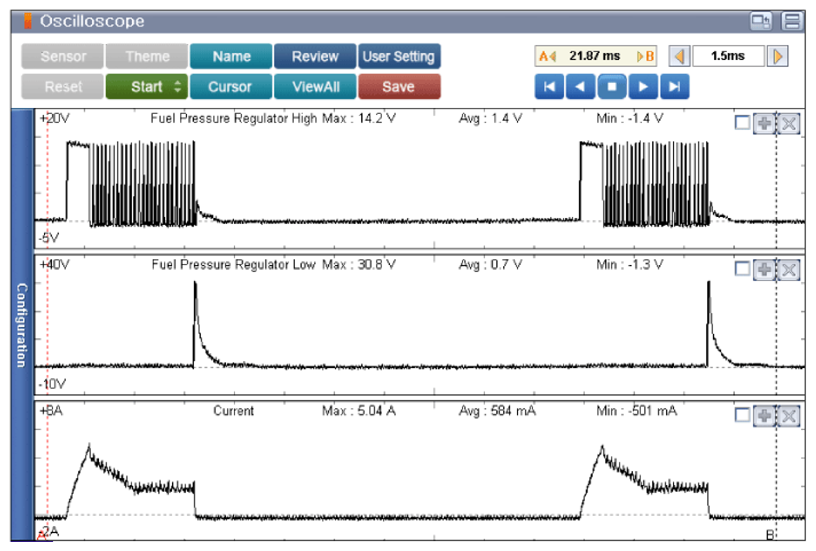

Fig 2: Display - Engine Approx. 2000rpm Screen
G09781652Courtesy of KIA MOTORS AMERICA, INC.

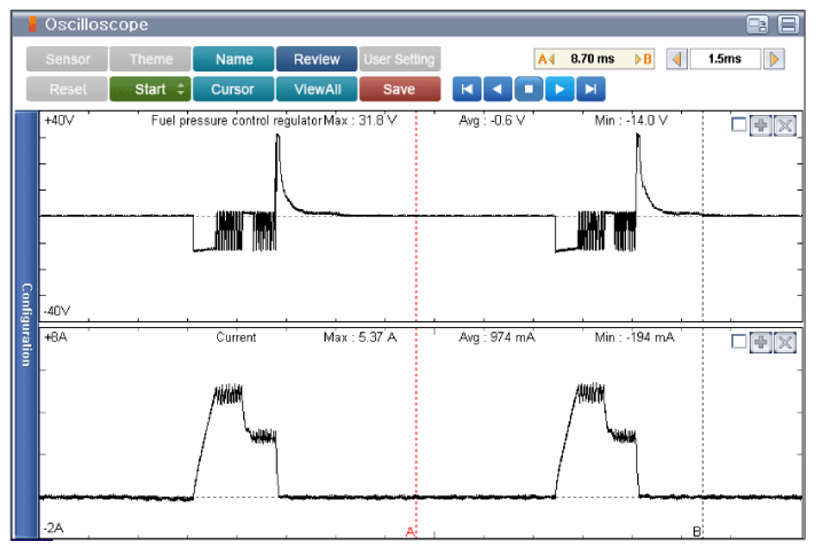

Fig 3: Display - Engine Approx. 3000rpm Screen
G09781653Courtesy of KIA MOTORS AMERICA, INC.
