Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

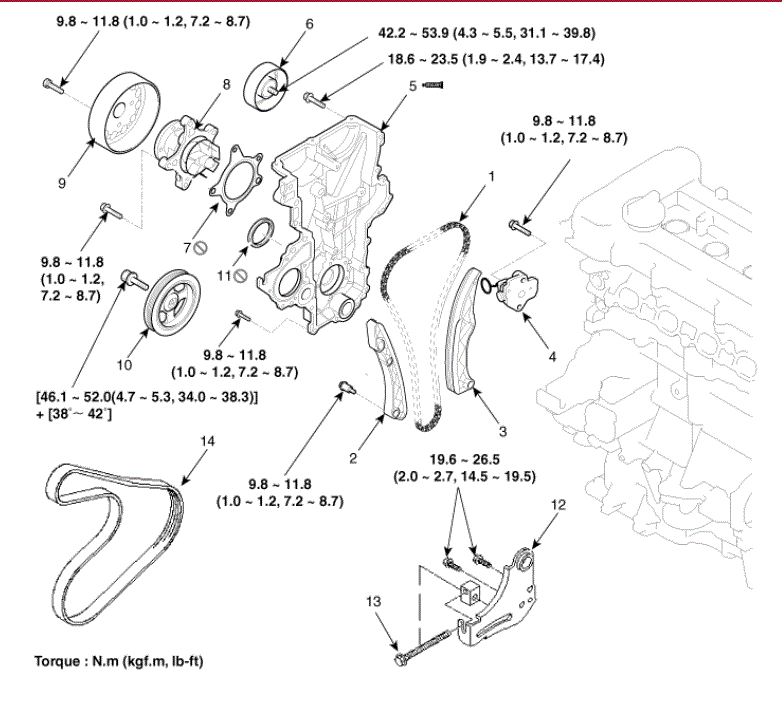

Fig 1: Timing Components With Torque Specifications
G00568970Courtesy of KIA MOTORS AMERICA, INC.
  1. Timing chain
  2. Timing chain guide
  3. Timing chain arm
  4. Timing chain auto tensioner
  5. Timing chain cover
  6. Drive belt idler
  7. Water pump gasket
  8. Water pump
  9. Water pump pulley
  10. Crank shaft pulley
  11. From oil seal
  12. Alternator bracket
  13. Tension adjust bolt
  14. Drive belt
