Repair Procedures: Removal

Remove the air cleaner assembly.
(Refer to "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to "BATTERY ")

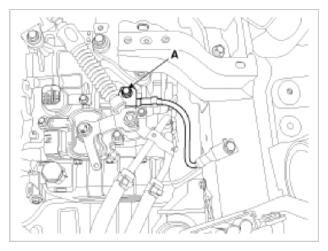

Remove the ground line after removing the bolt (A).

Fig 1: Removing Ground Line Bolt
Courtesy of KIA MOTORS AMERICA, INC.

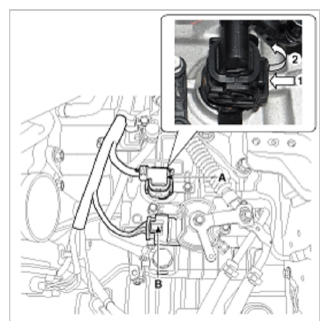

Disconnect the solenoid valve connector (A) and inhibitor switch connector (B).

Fig 2: Solenoid Valve & Inhibitor Switch Connectors
Courtesy of KIA MOTORS AMERICA, INC.

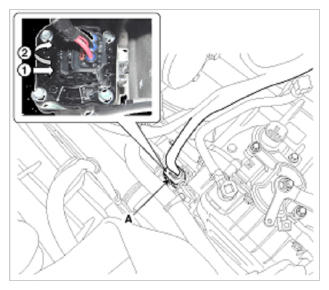

Disconnect the Electric Oil Pump (EOP) connector (A).

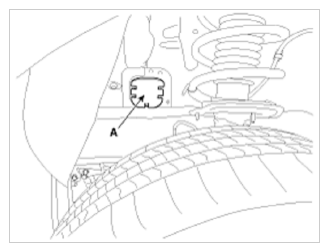

Fig 3: Electric Oil Pump Connector
Courtesy of KIA MOTORS AMERICA, INC.

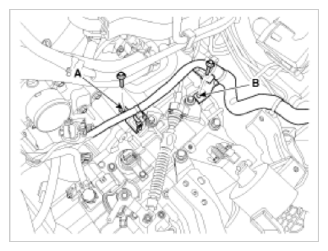

Remove the wiring brackets (A, B, C).
Tightening torque:

(A, C) 9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

(B) 14.7 ~ 21.6 N.m (1.5 ~ 2.2 kgf.m, 10.8 ~ 15.9 lb-ft)

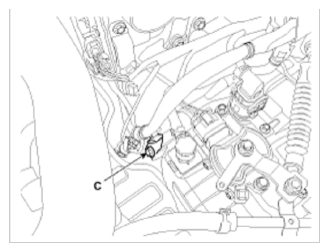

Fig 4: Wiring Brackets (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Wiring Brackets (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

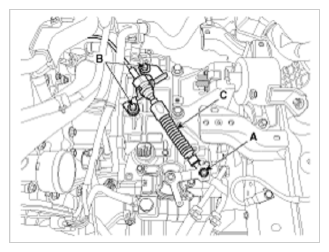

Remove the shift cable (C) after removing the nut (A) and bolts (B).
Tightening torque:

(A) 9.8 ~ 13.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.1 lb-ft)

(B) 14.7 ~ 21.6 N.m (1.5 ~ 2.2 kgf.m, 10.9 ~ 15.9 lb-ft)

Fig 6: Removing Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.

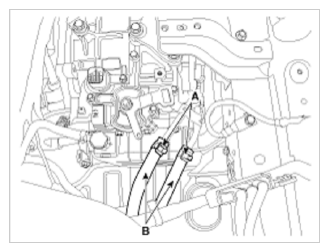

Disconnect the hose (B) after removing the automatic transaxle fluid cooler hose clamp (A).

Fig 7: Disconnecting Automatic Transaxle Fluid Cooler Hoses
Courtesy of KIA MOTORS AMERICA, INC.

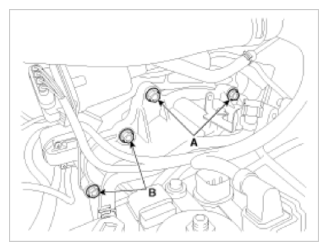

Remove the automatic transaxle upper mounting bolts (A) and the starter mounting bolts (B).
Tightening torque:

(A) 42.2 ~ 54.0 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)

(B) 49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

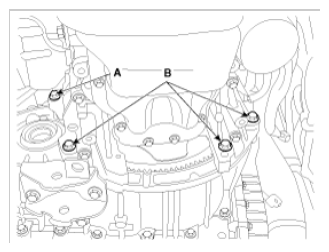

Fig 8: Automatic Transaxle Upper Mounting Bolts & Starter Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install the engine support fixture.
1. Loosen the bolts (A) from both side.
2. Assemble the engine support fixture.
  (Refer to "Engine support fixture assembly drawing" in "SPECIAL SERVICE TOOLS ")

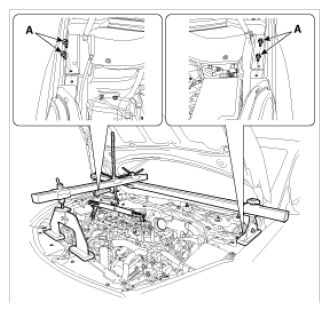

  Fig 9: Assembling Engine Support Fixture
  Courtesy of KIA MOTORS AMERICA, INC.
Remove the cover (A).

Fig 10: Removing Cover
Courtesy of KIA MOTORS AMERICA, INC.

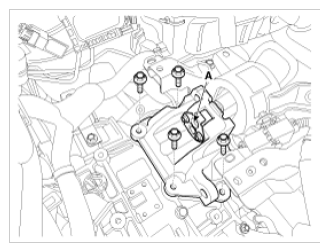

Remove the transaxle mounting bracket bolts (A).
Tightening torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.8 lb-ft)

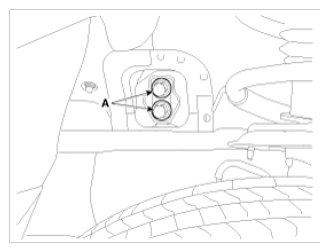

Fig 11: Removing Transaxle Mounting Bracket Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the transaxle support bracket (A).
Tightening torque:

58.9 ~ 78.5 N.m (6.0 ~ 8.0 kgf.m, 43.4 ~ 57.9 lb-ft)

Fig 12: Removing Transaxle Support Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle with a jack.
Remove the under cover and side cover.
(Refer to "ENGINE ROOM UNDER COVER ")
Remove the drive shaft assembly.
(Refer to "FRONT DRIVESHAFT ")
Remove the heat protector (A).
Tightening torque:

19.6 ~ 29.4 N.m (2.0 ~ 3.0 kgf.m, 14.5 ~ 21.7 lb-ft)

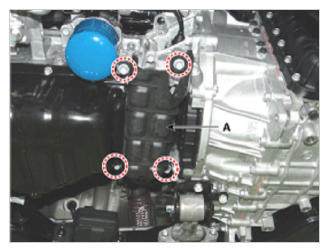

Fig 13: Removing Heat Protector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the air guide bracket (A).
Tightening torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

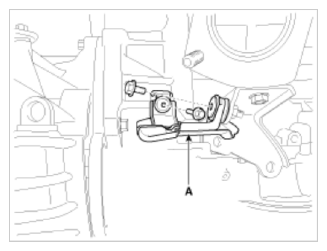

Fig 14: Removing Air Guide Bracket
Courtesy of KIA MOTORS AMERICA, INC.

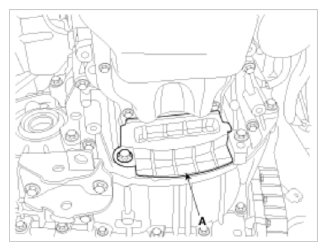

Remove the dust cover (A).
Tightening torque:

42.2 ~ 53.9 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)

Fig 15: Removing Dust Cover
Courtesy of KIA MOTORS AMERICA, INC.

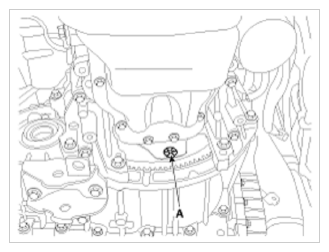

Remove the torque converter mounting bolts (A) with rotating the crankshaft.
Tightening torque:

45.1 ~ 52.0 N.m (4.6 ~ 5.3 kgf.m, 33.3 ~ 38.3 lb-ft)

Fig 16: Removing Torque Converter Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the roll rod bracket (C) after removing bolts (A, B).
Tightening torque:

(A) 49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47 lb-ft)

(B) 107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94 lb-ft)

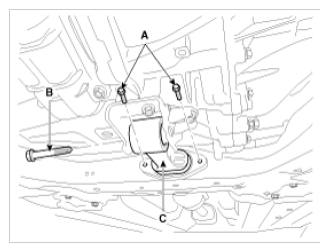

Fig 17: Roll Rod Bracket & Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the mounting bolts (A, B) after supporting the transaxle by a jack.
Tightening torque:

(A) 42.2 ~ 48.1 N.m (4.3 ~ 4.9 kgf.m, 31.1 ~ 35.4 lb-ft)

(B) 42.2 ~ 53.9 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)

Fig 18: Removing Automatic Transaxle Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the transaxle while slowly lower the jack.
NOTE: Be careful not to damage other system or parts near by when removing the transaxle assembly.
