AVN (A/V & Navigation) Head Unit Connector

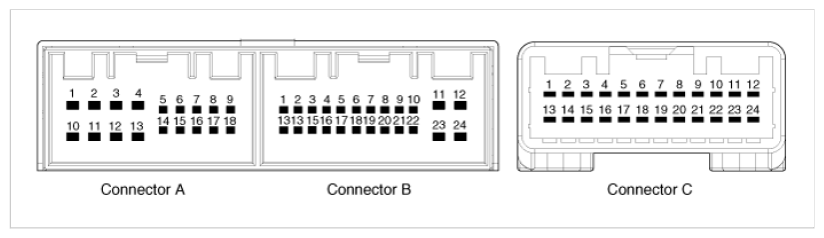

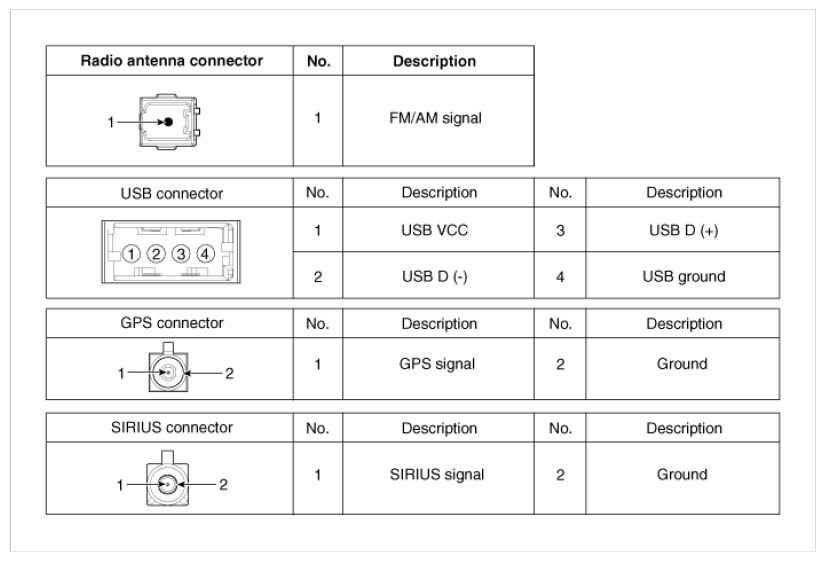

CONNECTOR PIN REFERENCE
| No. | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | - | MM CAN high | C CAN (-) |
| 2 | - | - | C CAN (+) |
| 3 | - | Parking | - |
| 4 | - | Steering remocon | - |
| 5 | SPDIF ground | - | - |
| 6 | SPDIF (+) | MTS key | - |
| 7 | ALT L | AUX video | - |
| 8 | Illumination (+) | AUX right input | - |
| 9 | R position | AUX ground | - |
| 10 | - | MIC (+) | - |
| 11 | - | Battery (+) | B CAN (+) |
| 12 | - | Battery (+) | B CAN (-) |
| 13 | - | MM CAN low | - |
| 14 | Ignition 1 | Auto light | Airbag |
| 15 | SPDIF (-) | P position | - |
| 16 | Door unlock | Speed | Navigation voice (-) |
| 17 | Illumination (-) | Remocon ground | Navigation voice (+) |
| 18 | Remote antenna | ACC | Door open |
| 19 | AUX video ground | - | |
| 20 | AUX DETECT | - | |
| 21 | AUX left input | Ground | |
| 22 | MIC (-) | Video ground | |
| 23 | Ground | Camera video input | |
| 24 | Ground | Camera battery (+) |
