Monitor GDS Data

  1. Connect GDS to DLC (Data Link Cable).
  2. Check the "Current Data  " about related DTC with GDS.

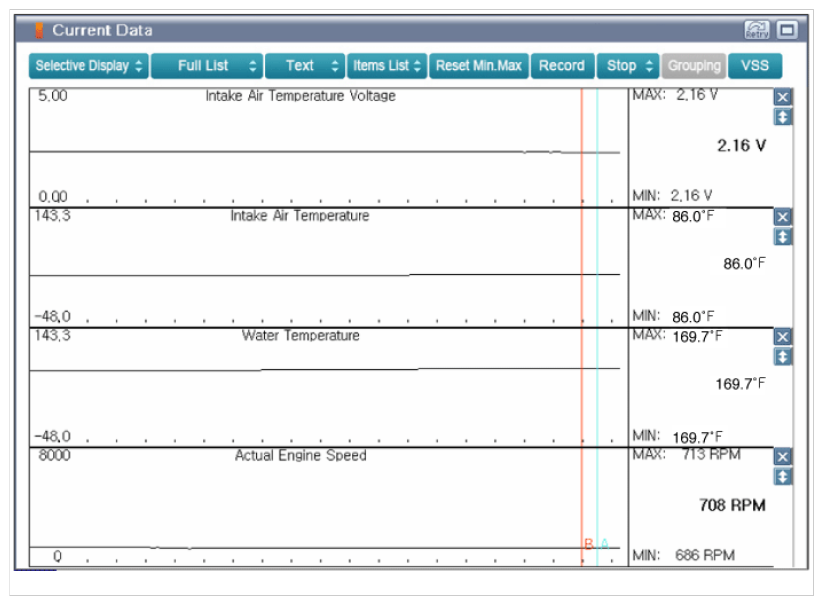

    Fig 1: IATS Waveforms - Engine Idle After Warm Up
    G09776327Courtesy of KIA MOTORS AMERICA, INC.

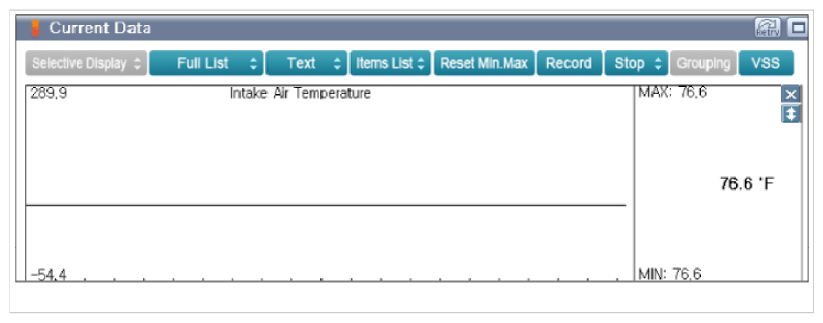

    Fig 2: IATS Waveform - Intake Air Temperature Sensor Open Circuit Status
    G09776328Courtesy of KIA MOTORS AMERICA, INC.
  3. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
