Signal Waveform & Data

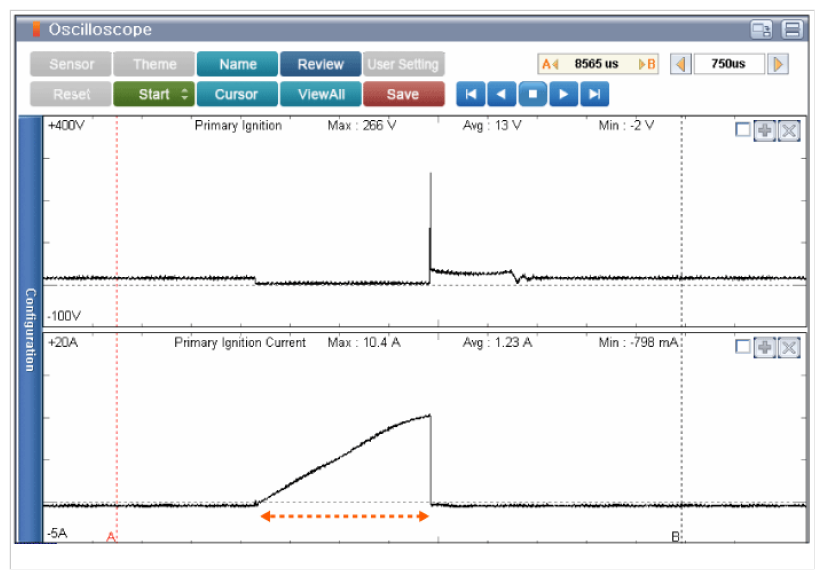

Fig 1: Primary Ignition Waveforms - Engine Idle After Warm Up

Courtesy of KIA MOTORS AMERICA, INC.

Primary Ignition control time - Approx. 750us

CH. A - Primary Ignition Max 266V

CH. AUX - Primary Ignition Current MAX 10.4A

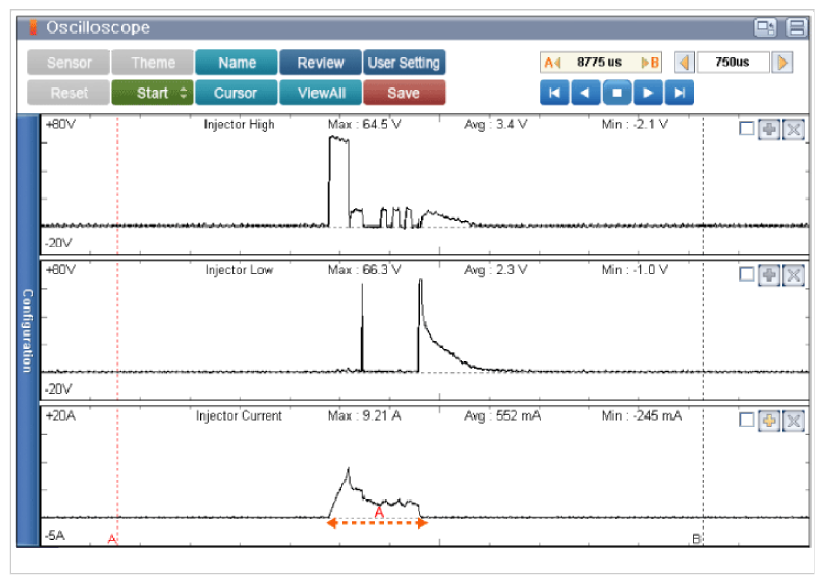

Fig 2: Fuel Injector Waveforms - Engine Idle After Warm Up

Courtesy of KIA MOTORS AMERICA, INC.

A: Fuel injection time - Approx. 1545us

CH. A - Injector Max 64.4V

CH. AUX - Injector Current MAX 9.09A
