Signal Waveform & Data

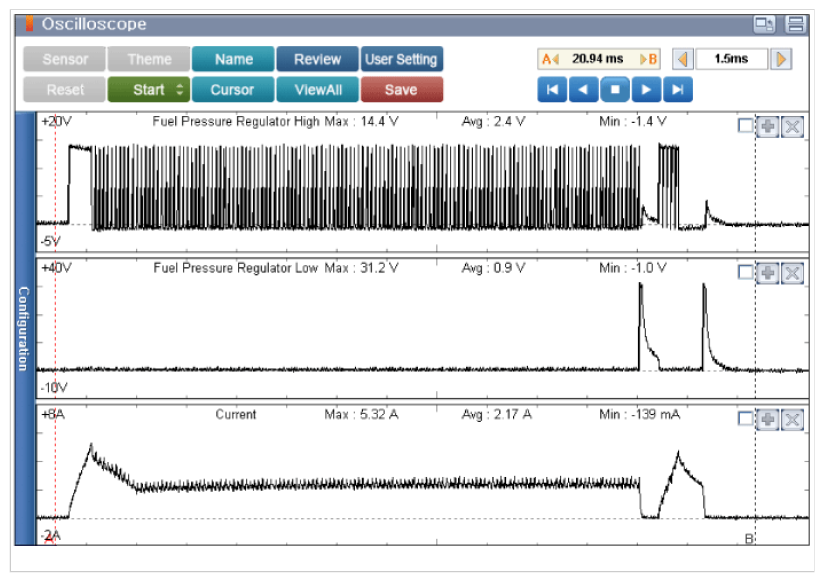

Fig 1: Fuel Pressure Regulator Waveforms - Engine Idle After Warm Up
G09777339Courtesy of KIA MOTORS AMERICA, INC.

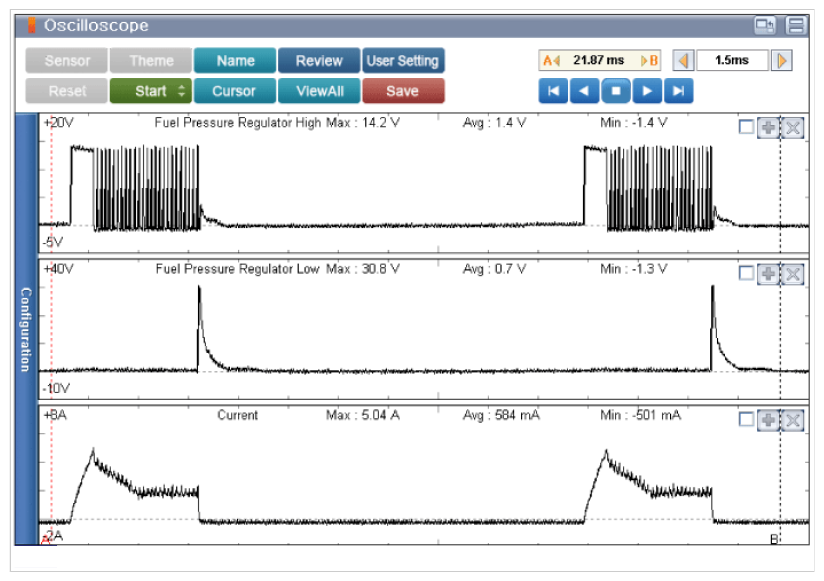

Fig 2: Fuel Pressure Regulator Waveforms - 2000 RPM
G09777340Courtesy of KIA MOTORS AMERICA, INC.

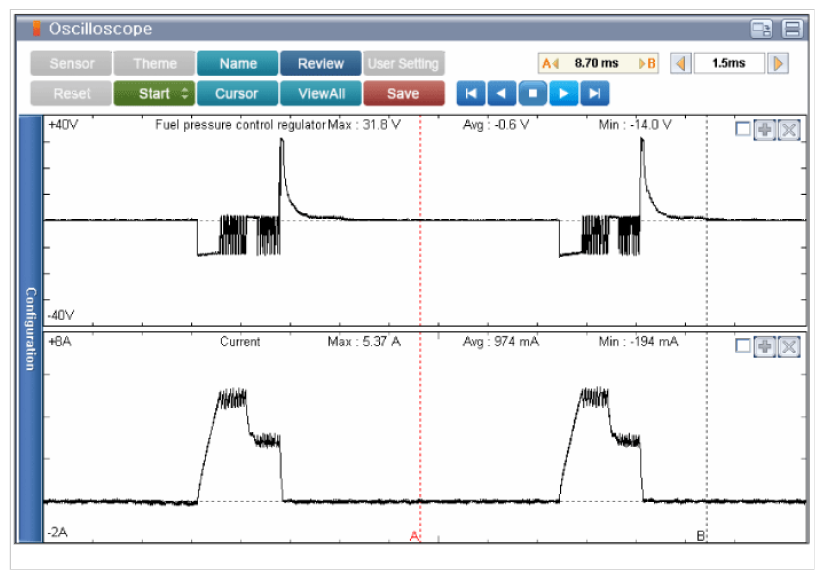

Fig 3: Fuel Pressure Regulator Waveforms - 3000 RPM
G09777341Courtesy of KIA MOTORS AMERICA, INC.
