ESC Module Connector End View (C103)

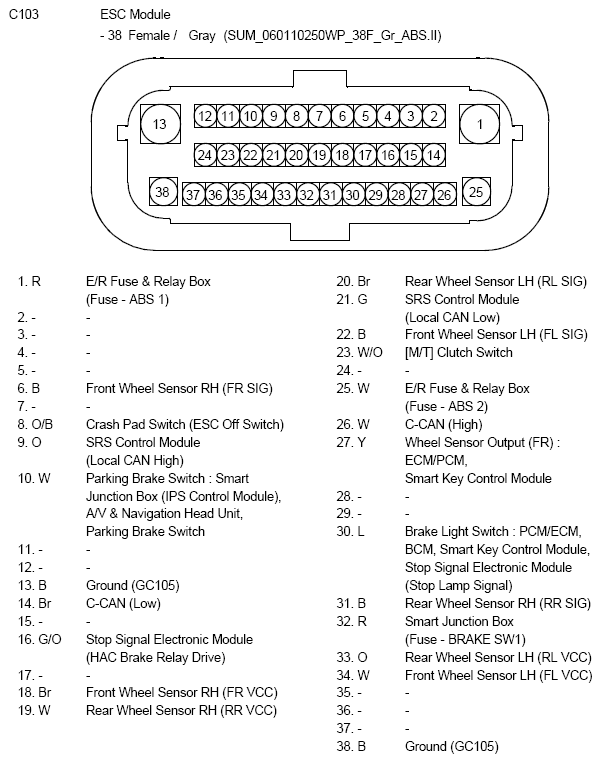

Fig 1: ESC Module Connector End View (C103)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
